KSC SERIESKSC SERIESKSC SERIES

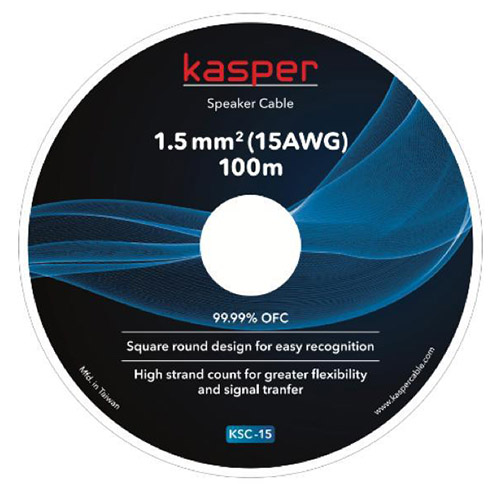

KSC-15/100M
Specification: (7/20/0i 115OFC+PVC)*2F
OD: 3i2*6i4mm Matt White
Length: 100Meters/Minimum
Qty/Carton: 2 Spools
Spool Size: PK-200*100*120*5mm
Net Weight: 10.1 Kgs
Spool Sticker: YES
Gross Weight: 10.5 Kgs
In Wall: YES
Measure: 0.47′

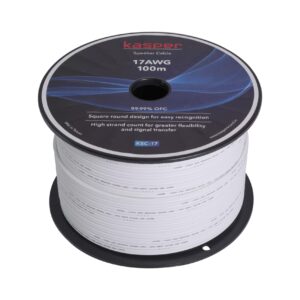

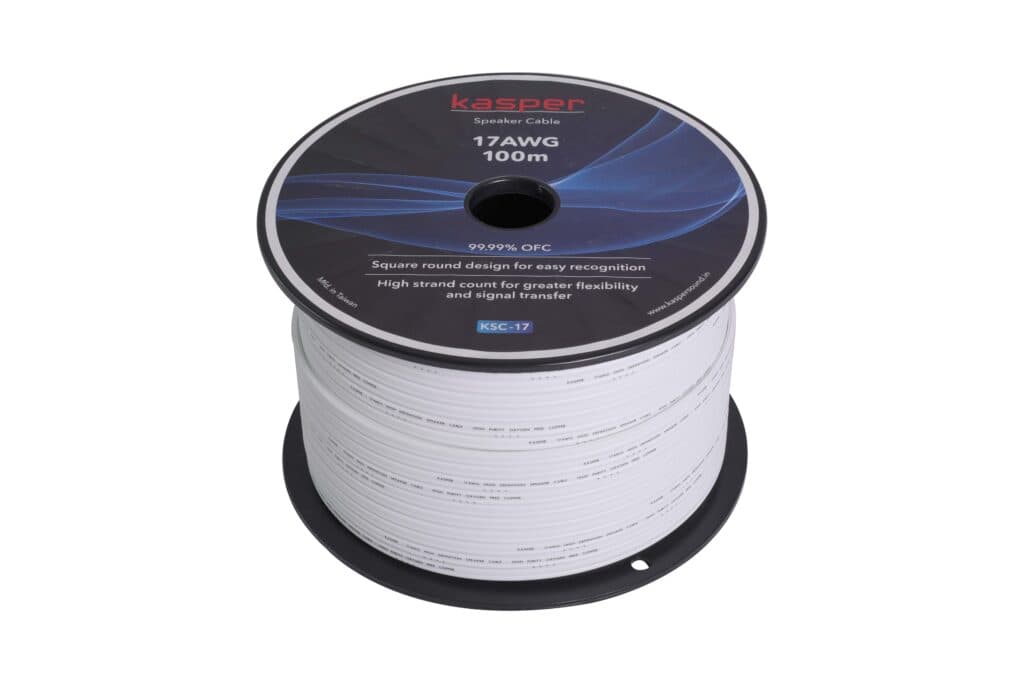

KSC-17/100M
Specification:(7/13/0.115OFC+PVC)*2F
OD: 3.0*6.0mm Matt White
Length: 100Meters/Minimum
Qty/Carton:4 Spools
Spool Size:PK-200*100*120*5mm
Net Weight:16.7 Kgs
Spool Sticker: YES
Gross Weight: 16.7 Kgs
In Wall:YES
Measure:0.89′

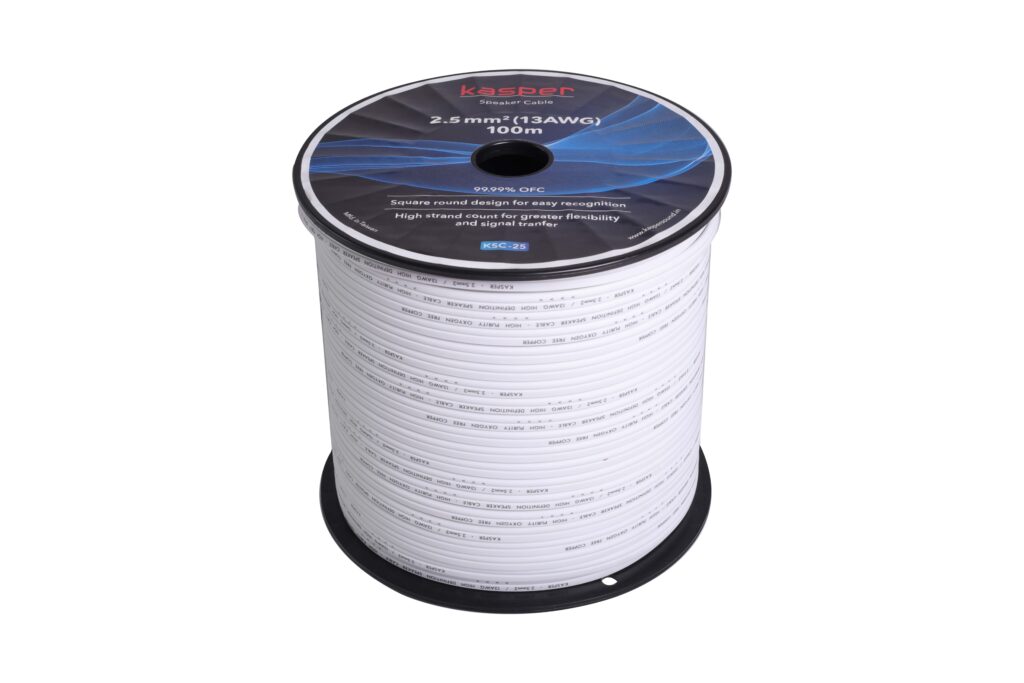

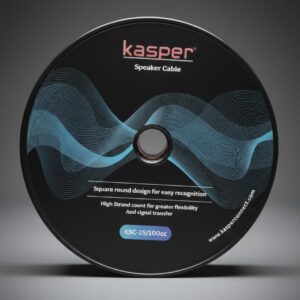

KSC-25/100M
Specification:(7/35/0.115OFC+PVC)*2F
OD: 4.0*8.0mm Matt White or matt Pearl Champagne
Length:100Meters/Minimum
Qty/Carton:2 Spools
Spool Size:PK-200*100*180*5mm
Net Weight:16.3 Kgs
Spool Sticker: YES
Gross Weight: 16.7 Kgs
In Wall:YES
Measure:0.66′

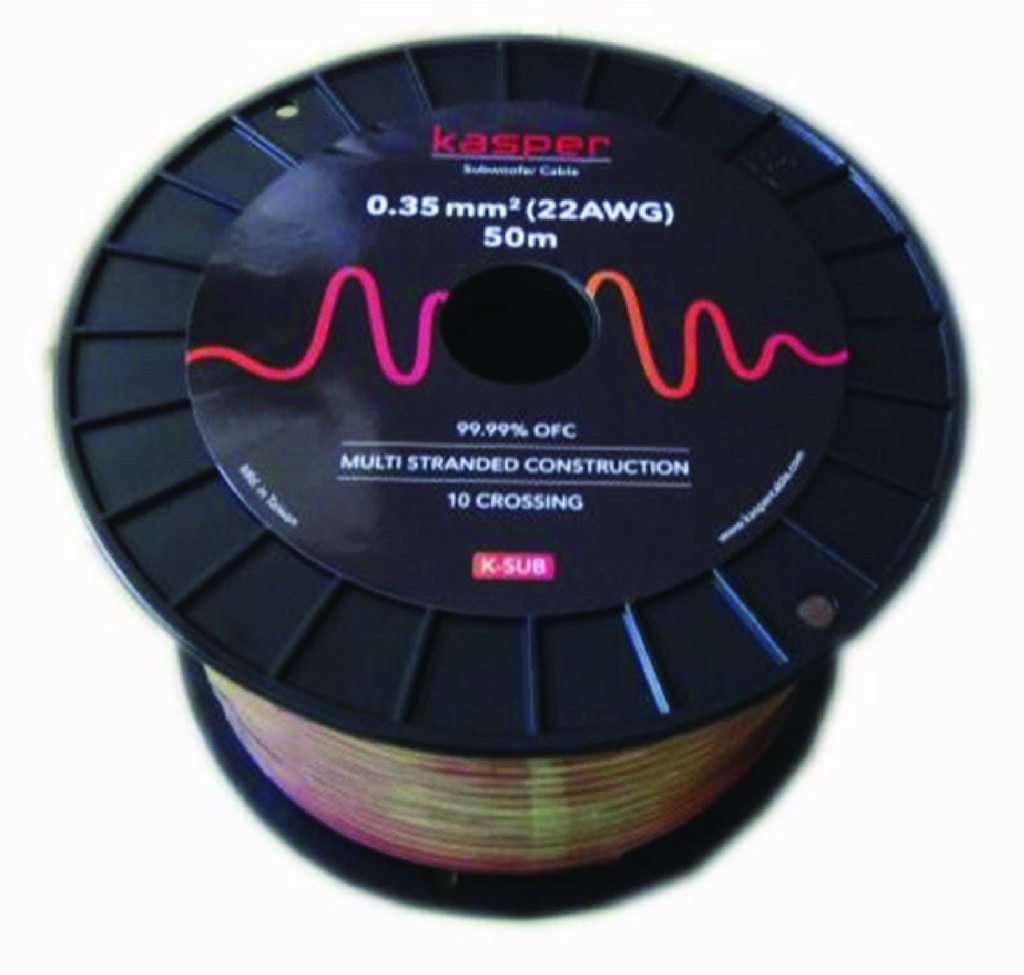

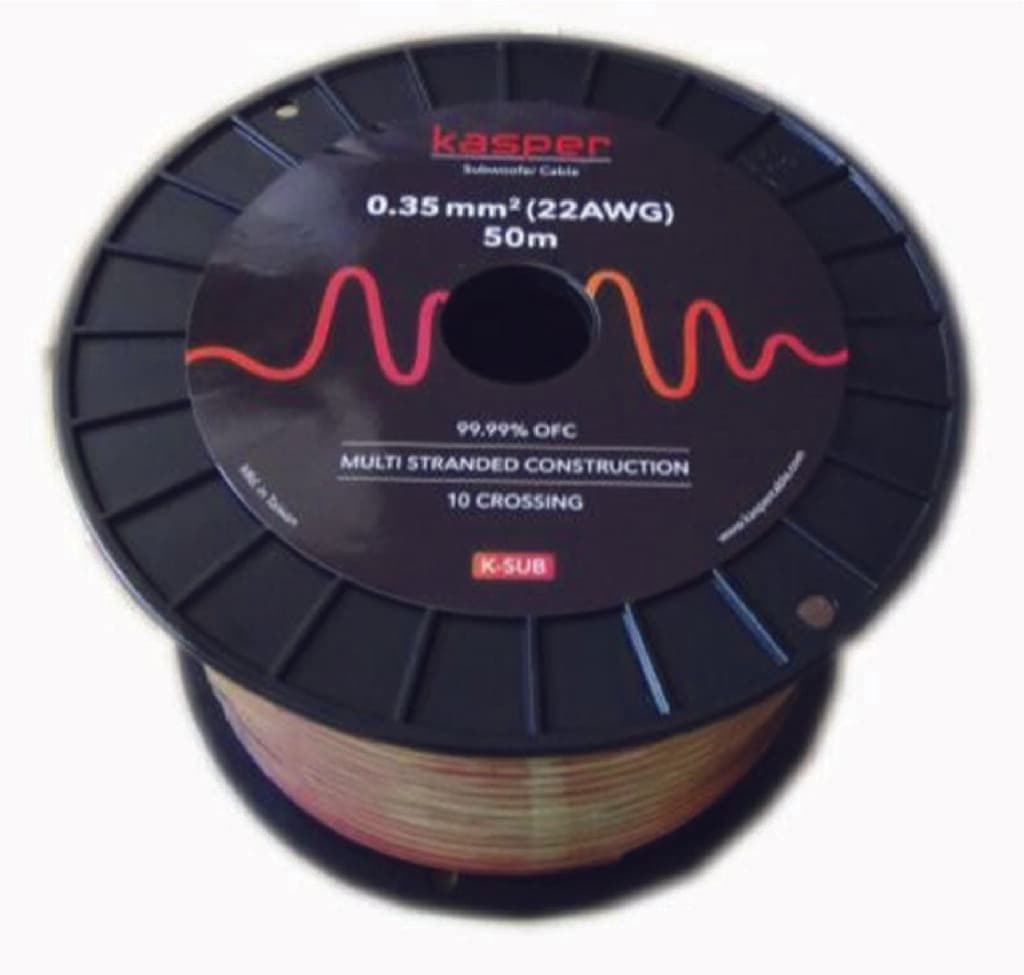

K-SUB/50
Specification: (20/0.115OFC+PVC)*2c+cotton Yarn+AL+B16/8/0.10BC+PVC]*1c
OD: 6.5mm Matt red
Length:50Meters/Minimum
Qty/Carton:2 Spools
Spool Size:PK-200*100*120*5mm
Net Weight:6.6 Kgs
Spool Sticker: YES
Gross Weight: 7.1 Kgs
In Wall:YES
Measure:0.47′
KIC SERIESKIC SERIESKIC SERIES

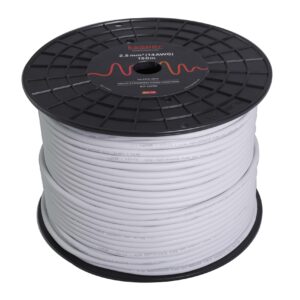

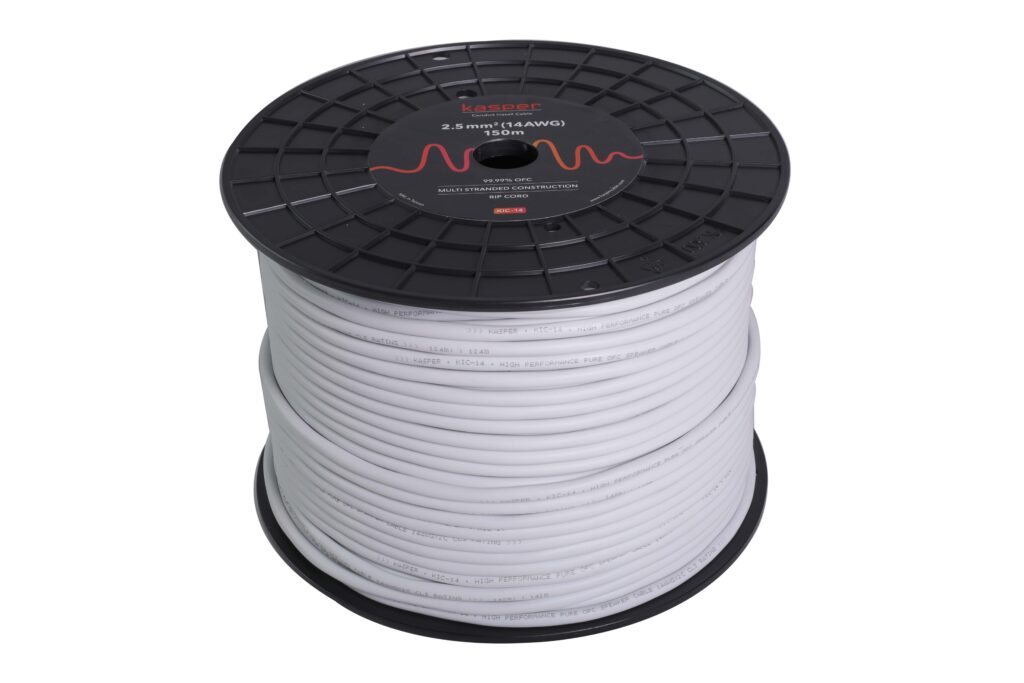

KIC-14
Specification:
[(103/0i 16OFC+PVC)*2C+Paper+Ripcord+PVC]*1C
OD:7i5mm Matt White
Length:150Meters/Minimum
Qty/Carton:1 Spool
Spool Size:PK-300*150*200*6mm
Net Weight:14.3 Kgs
Gross Weight:14.8 Kgs
Spool Sticker:yes
In Wall:NO
Measure:0.80′

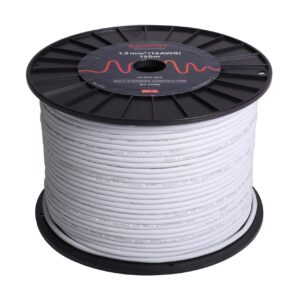

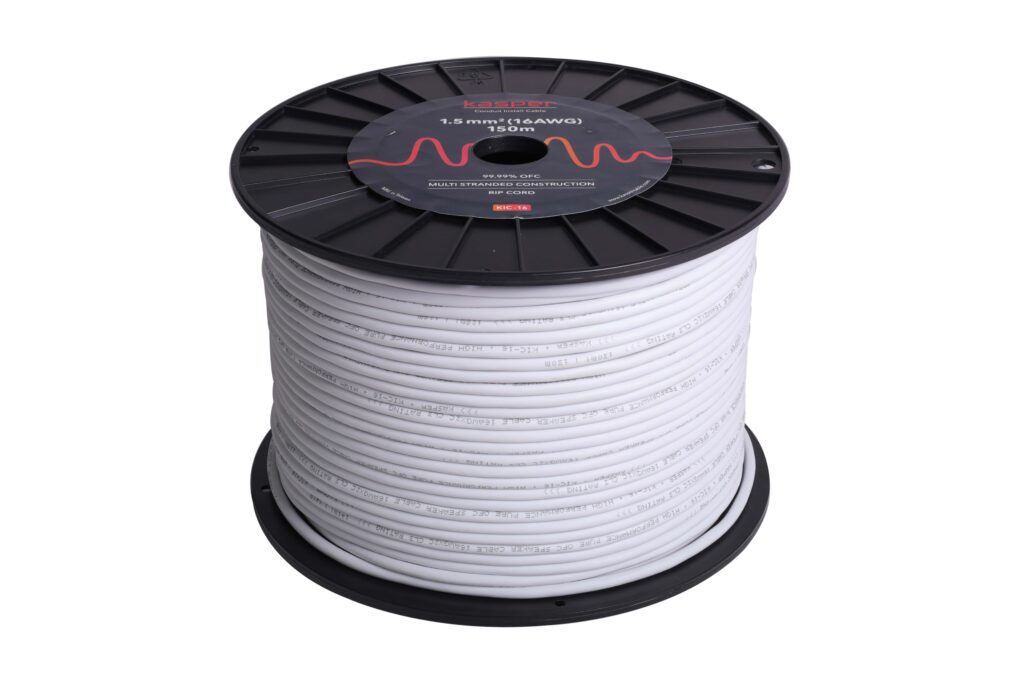

KIC-16
Specification:
[(65/0i 16OFC+PVC)*2C+Paper+Ripcord+PVC]*1C
OD:5i3mm Matt White
Length:150Meters/Minimum
Qty/Carton:2 Spool
Spool Size:PK-250*125*160*6mm
Net Weight:16.2 Kgs
Gross Weight:14.9 Kgs
Spool Sticker:yes
In Wall:NO
Measure:0.93′

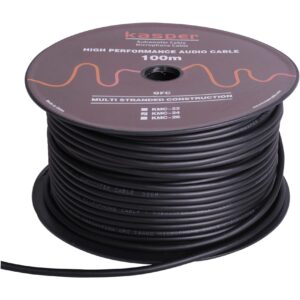

KMC SERIES (Microphone & Subwoofer)KMC SERIES (Microphone & Subwoofer)KMC SERIES (Microphone & Subwoofer)

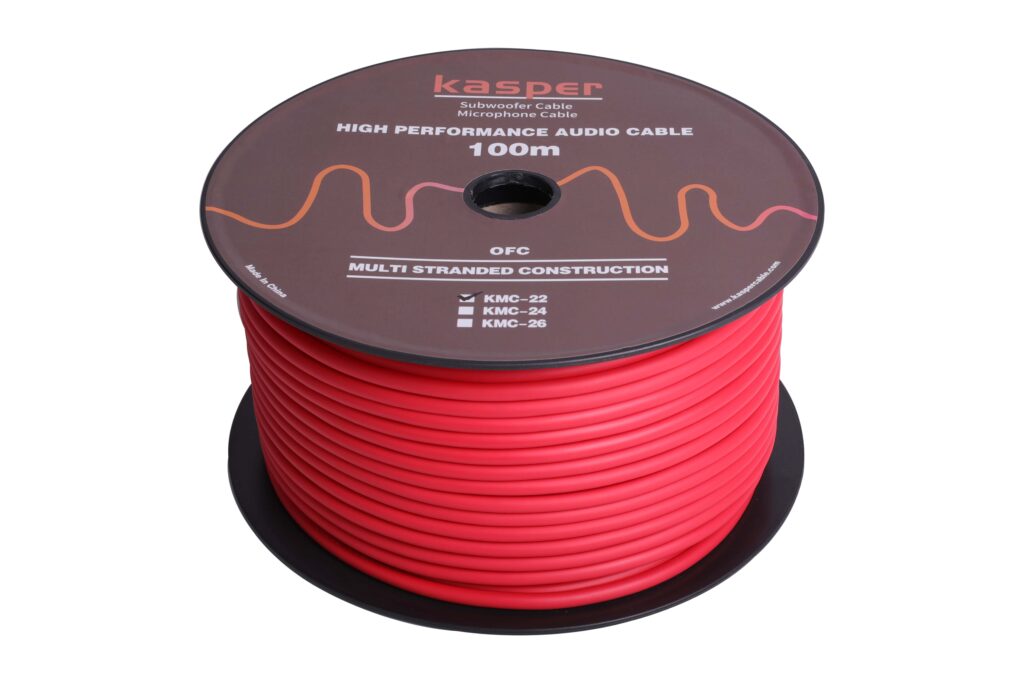

KMC - 22
Description :
22awg 2 conductor OFC microphone cable | Red color PVC Jacket | (28/0.12 BC +HDPE ID1.8)*2 Core +copper braided 96/0.10 BC +cotton filler+PVC OD6.0mm

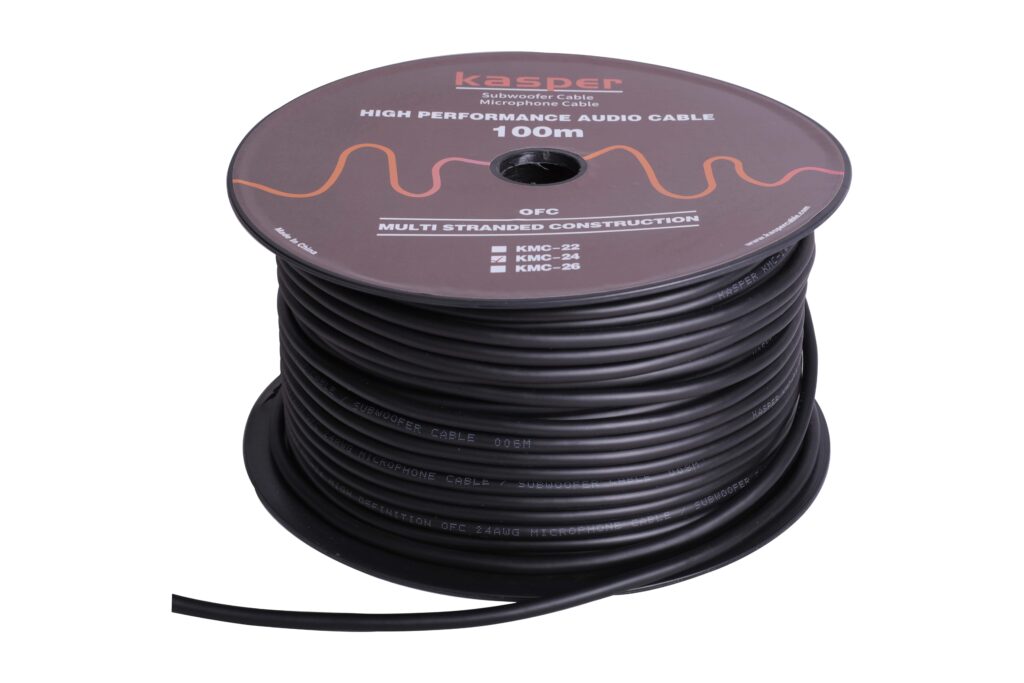

KMC - 24
Description :
24awg 2 conductor OFC microphone cable | Black color PVC Jacket | (20/0.12 BC +HDPE ID1.5)*2 Core +copper braided 96/0.10 BC +cotton filler+PVC OD6.0mm

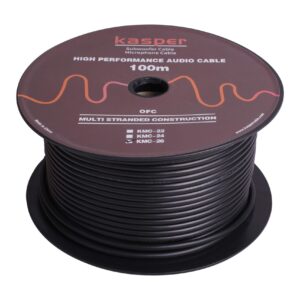

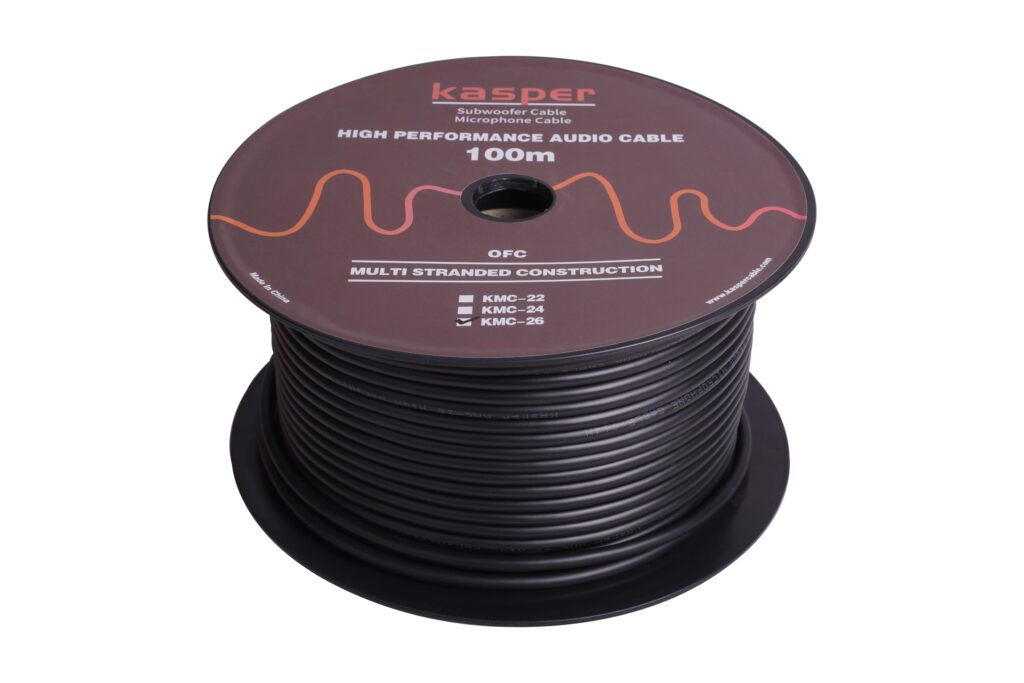

KMC - 26
Description :
26awg 2 conductor OFC microphone cable | Black color PVC Jacket | (16/0.12 BC +HDPE ID1.5)*2 Core +copper braided 64/0.12 BC +cotton filler+PVC OD6.0mm
