In ceiling Speakers

NOVO SERIESNOVO SERIESNOVO SERIES

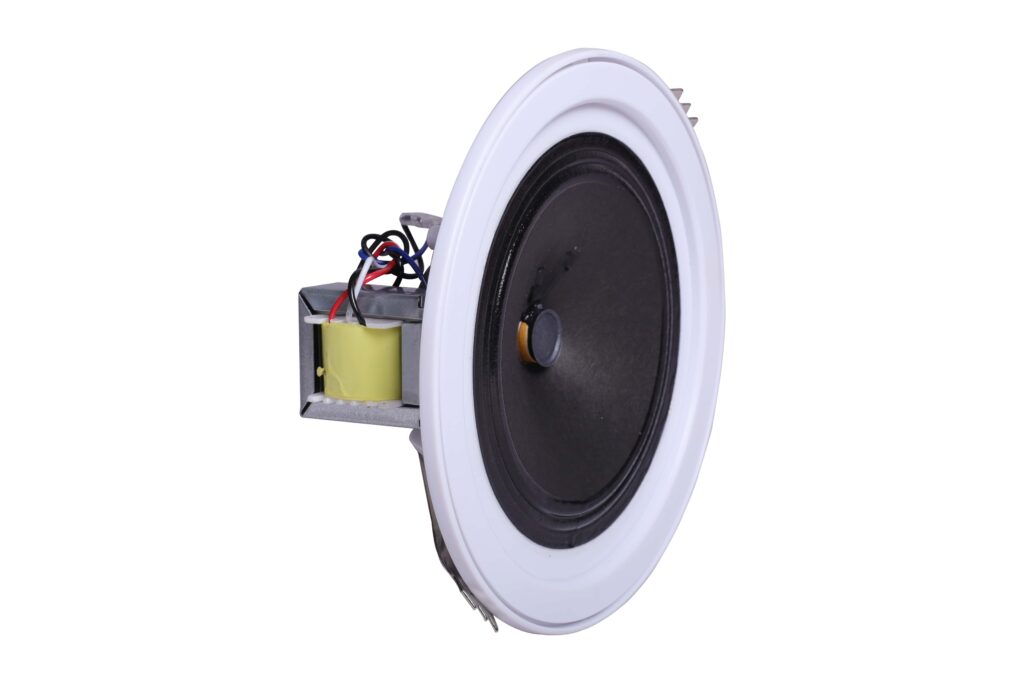

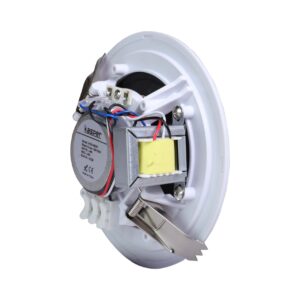

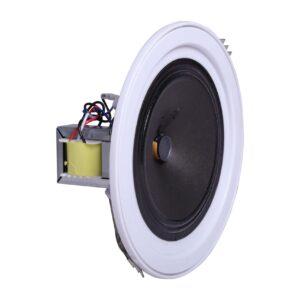

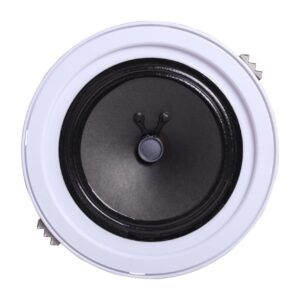

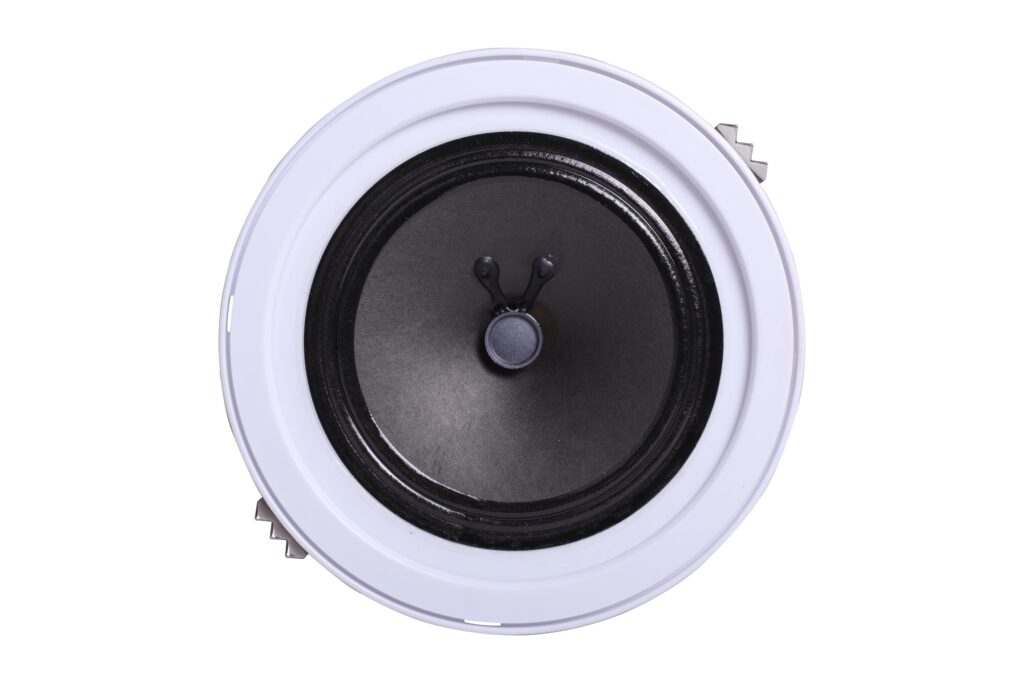

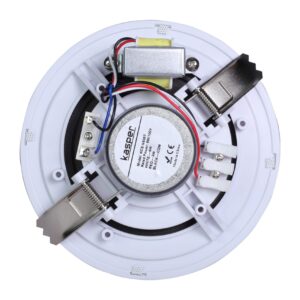

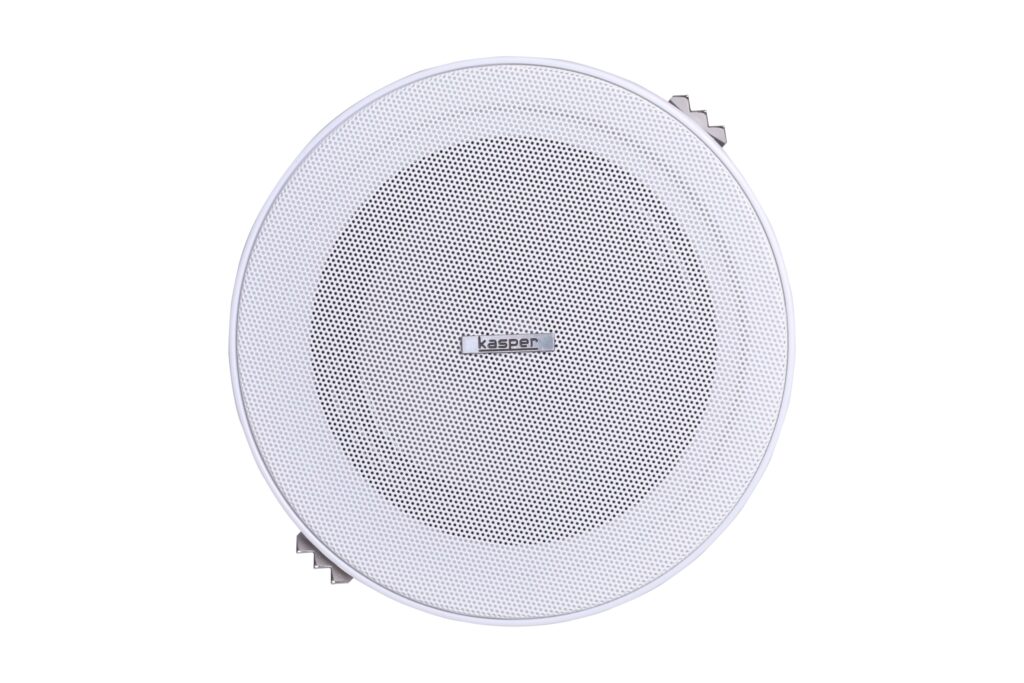

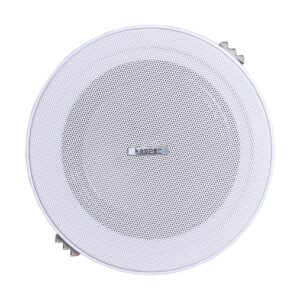

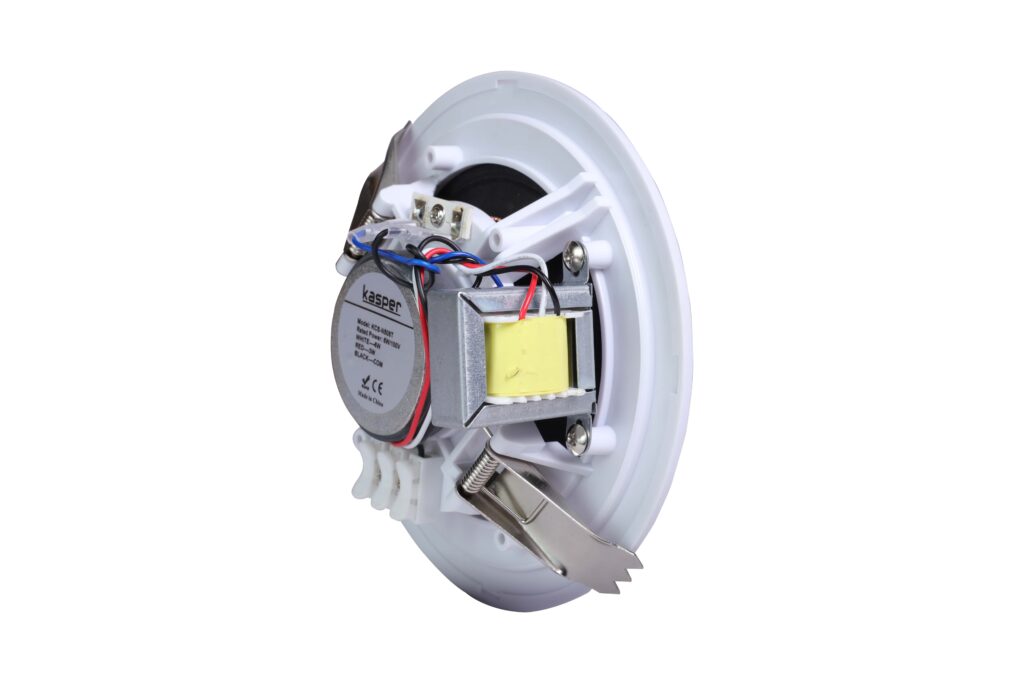

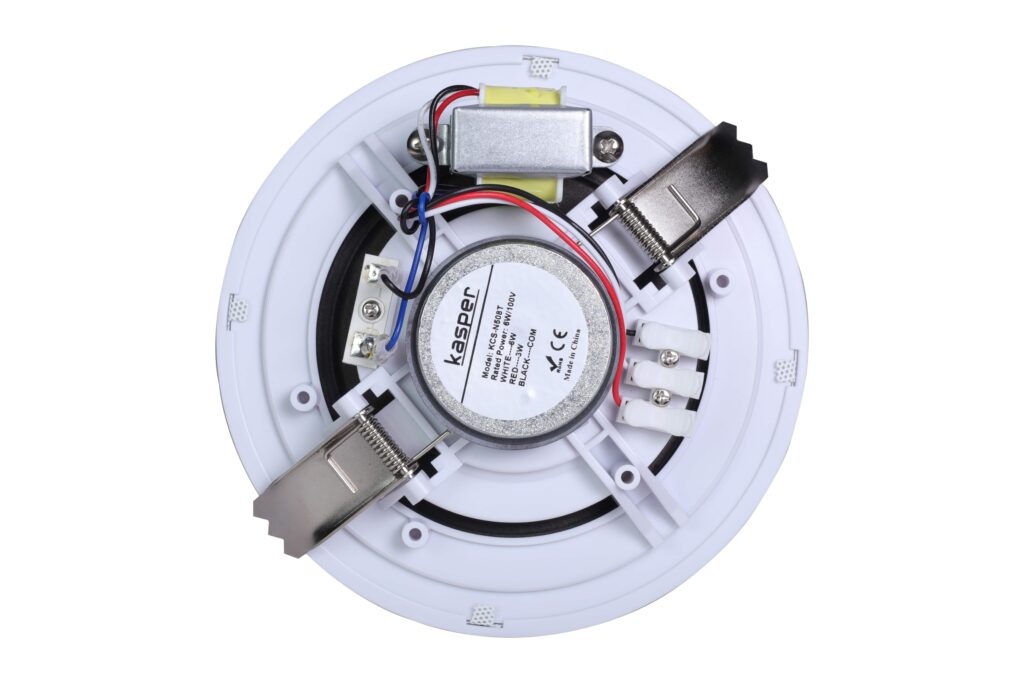

KCS-N508T

{Rimless Ceiling Speaker}

Power at 100V: 3/6W
Power at 70V: 1.5/3W
SPL( 1W/1M): 92dB
Max SPL@ 1M: 99dB
Freq. Response: 100Hz-16KHz
Cutout Size: Dia 150mm
Installation: Dia175x60mm(H)
Mounting Type: Inceiling
Enclosure Material: ABS
Weight: 0.5Kg
Finish: White
Speakers: 5″x1 full range

Read in PDF

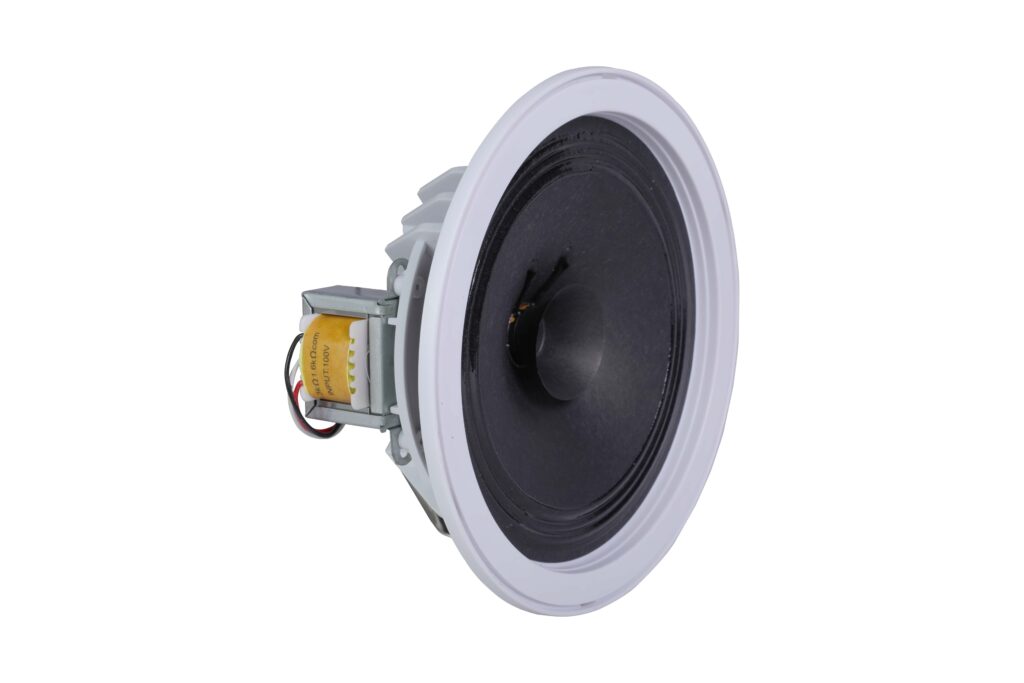

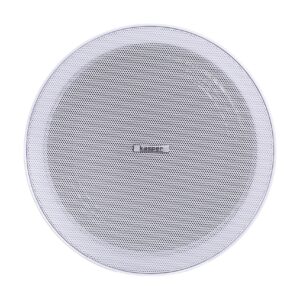

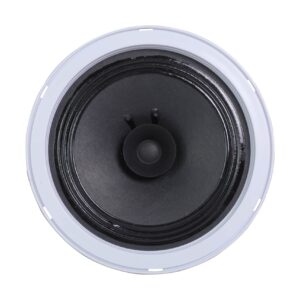

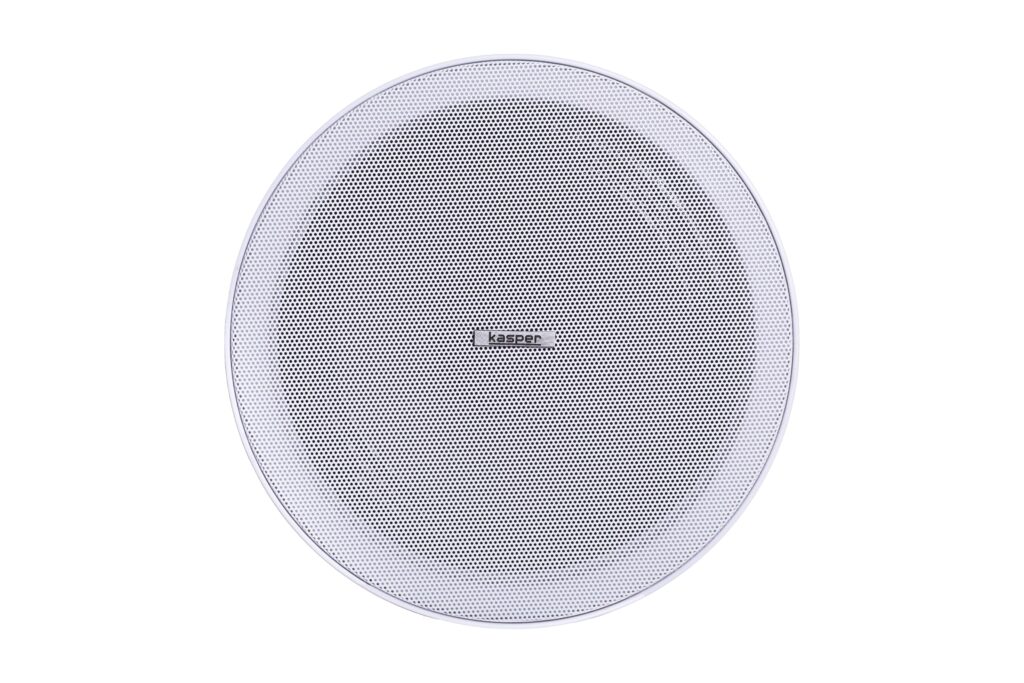

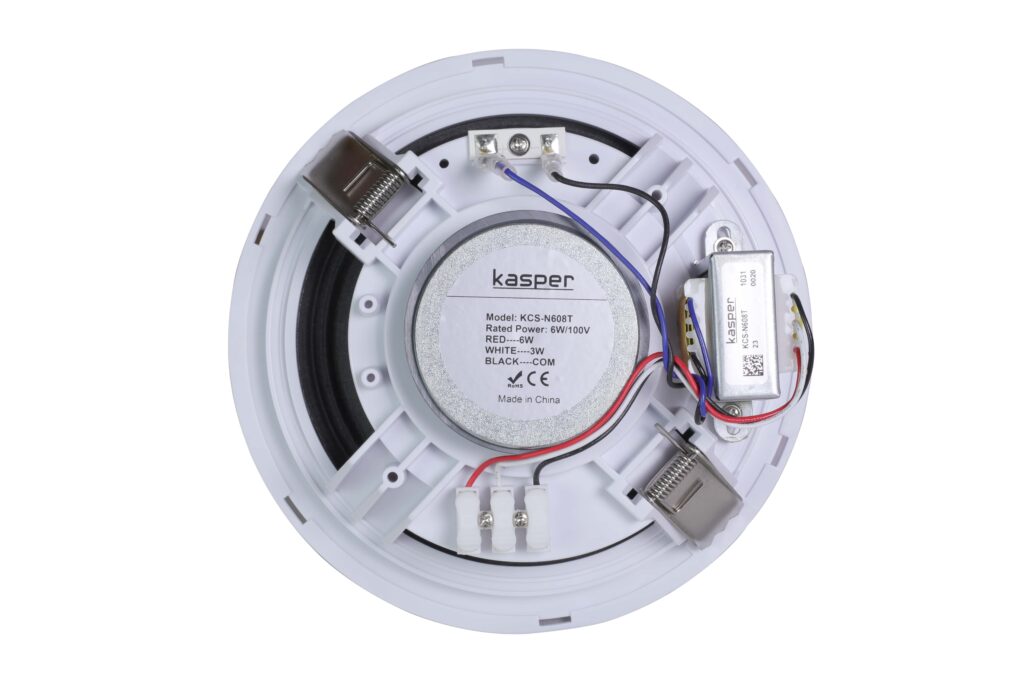

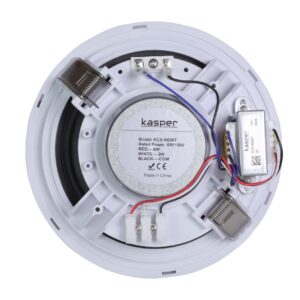

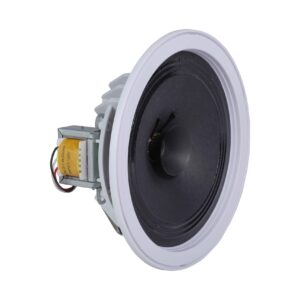

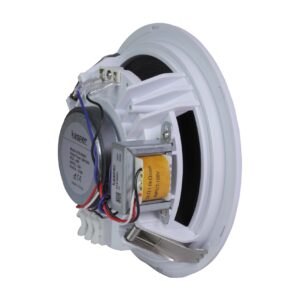

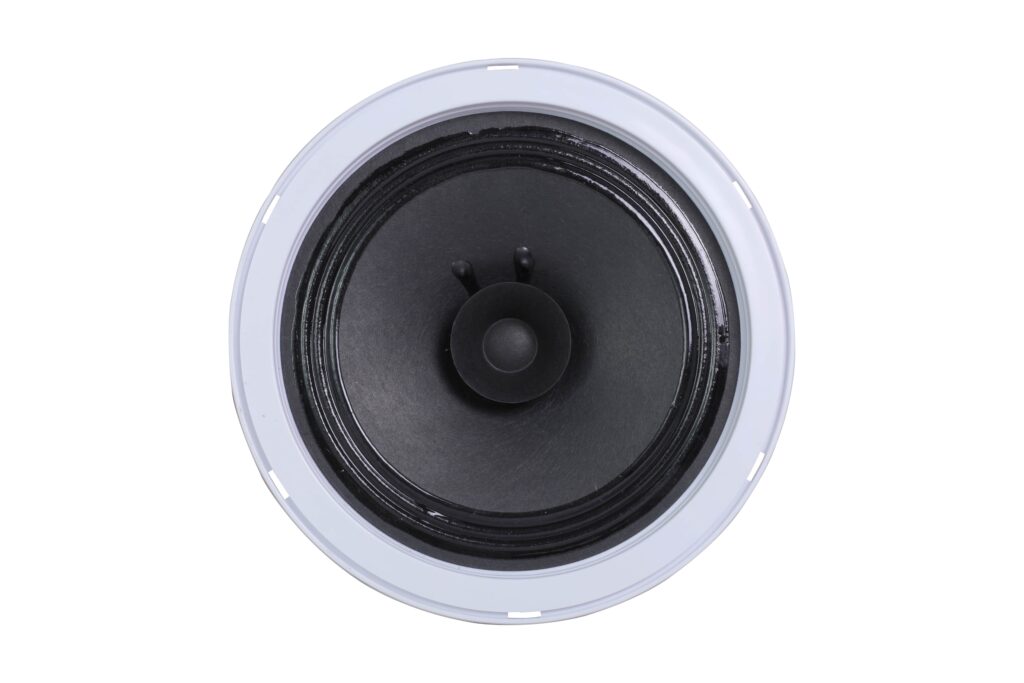

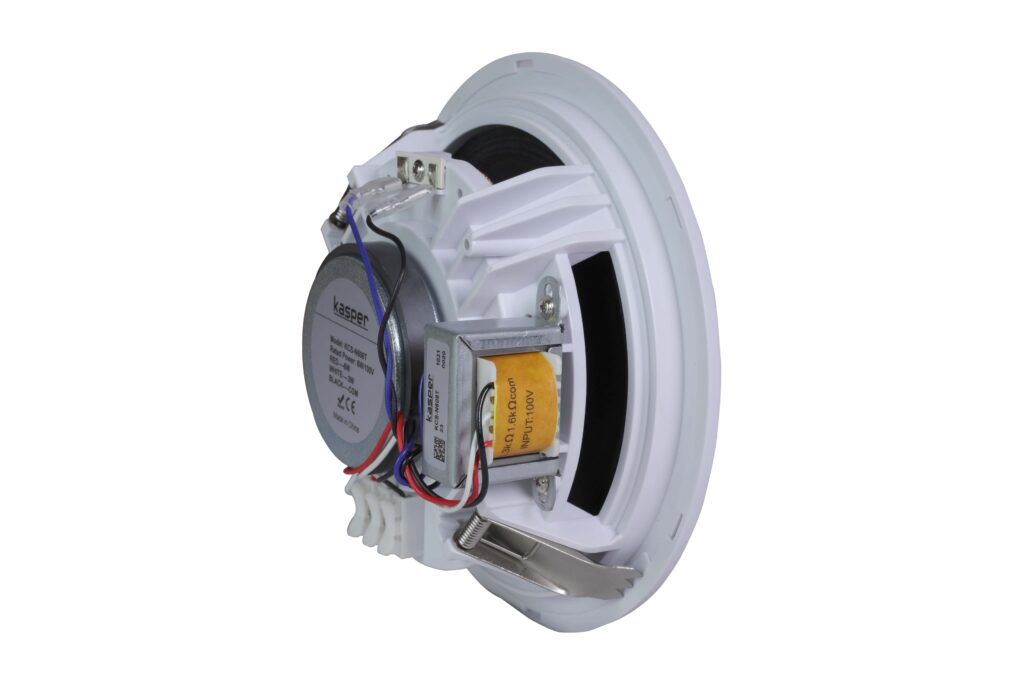

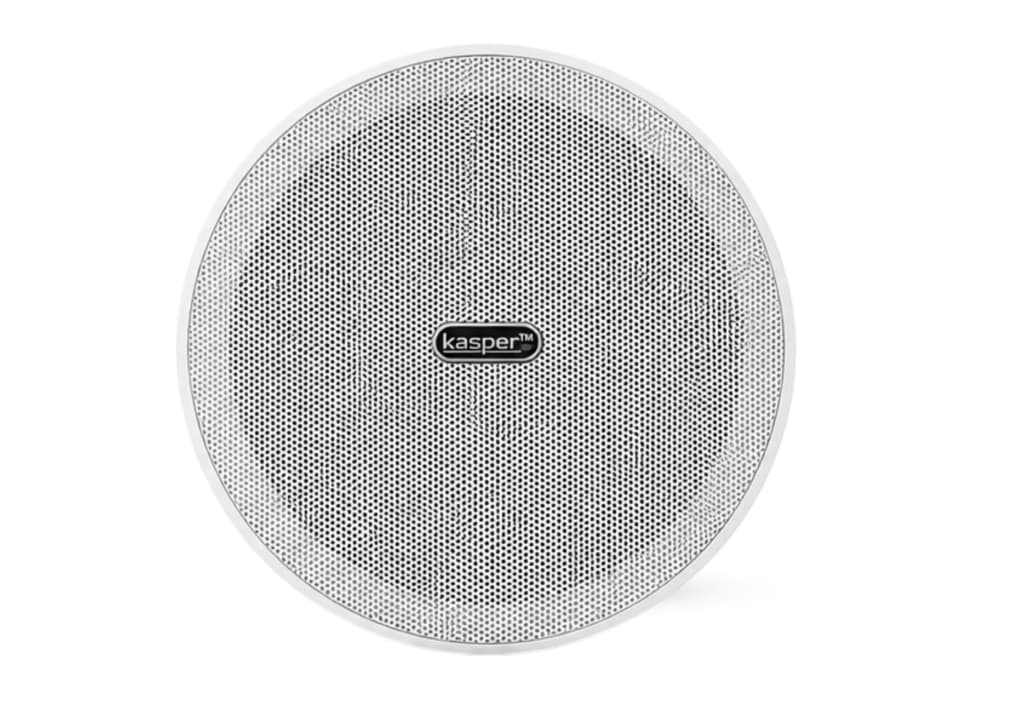

KCS-N608T

{Rimless Ceiling Speaker}

Power at 100V: 3/6W
Power at 70V: 1.5/3W
SPL( 1W/1M): 92dB
Max SPL@ 1M: 99dB
Freq. Response: 100Hz-18KHz
Cutout Size: Dia 170mm
Installation: Dia185x75mm(H)
Mounting Type: Inceiling
Enclosure Material: ABS
Weight: 0.7Kg
Finish: White
Speakers: 6″x1 full range

Read in PDF

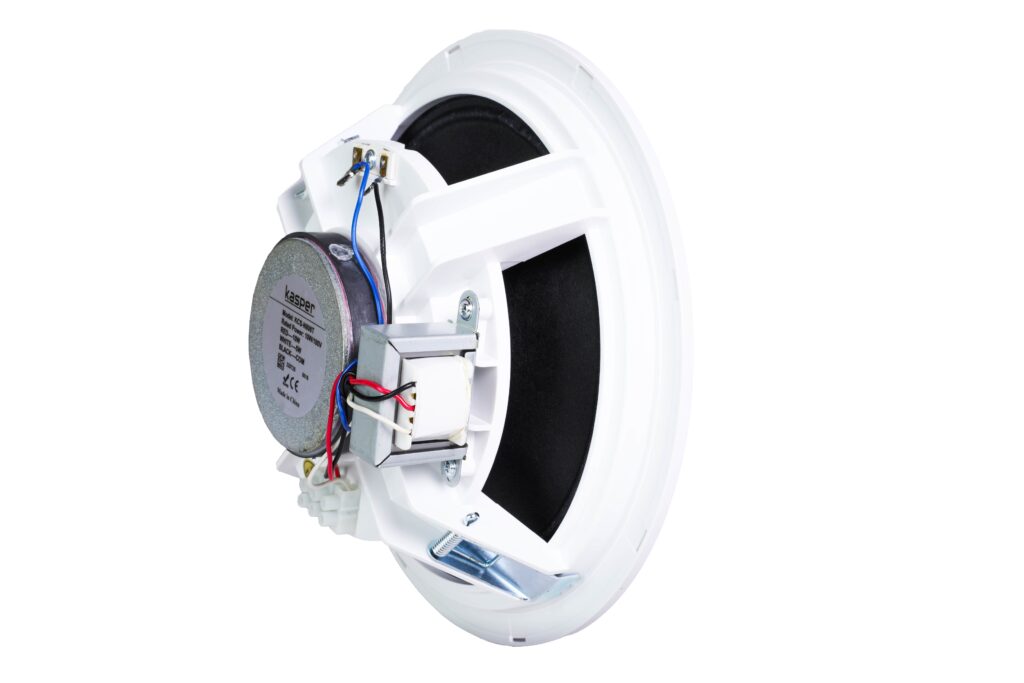

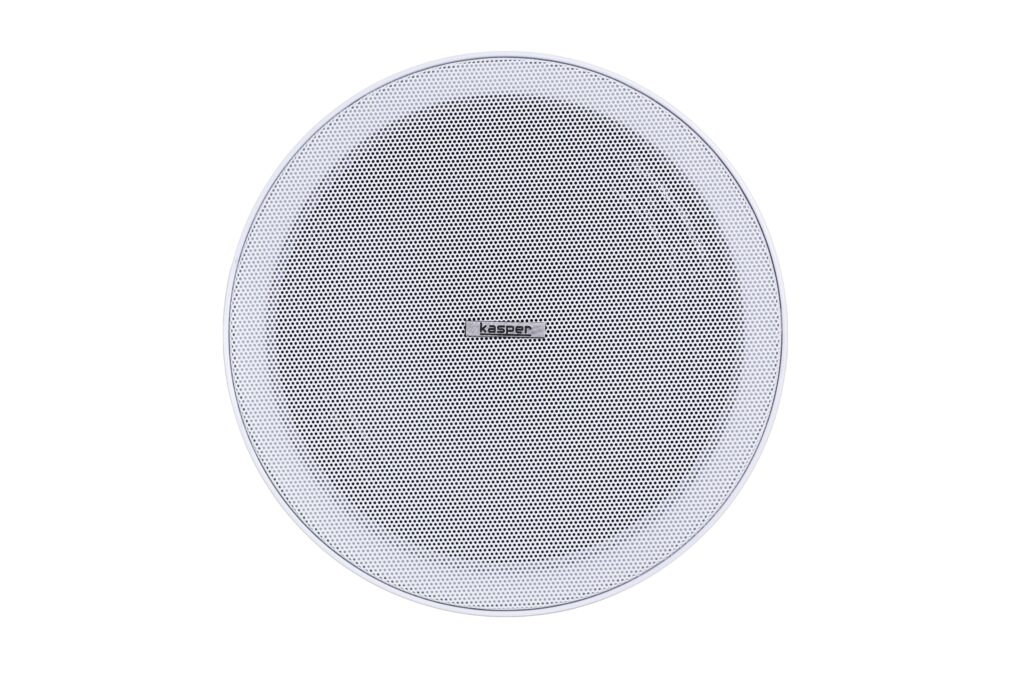

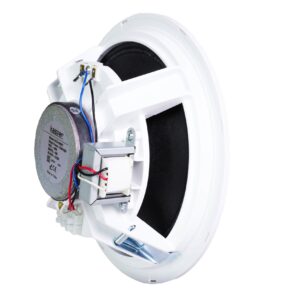

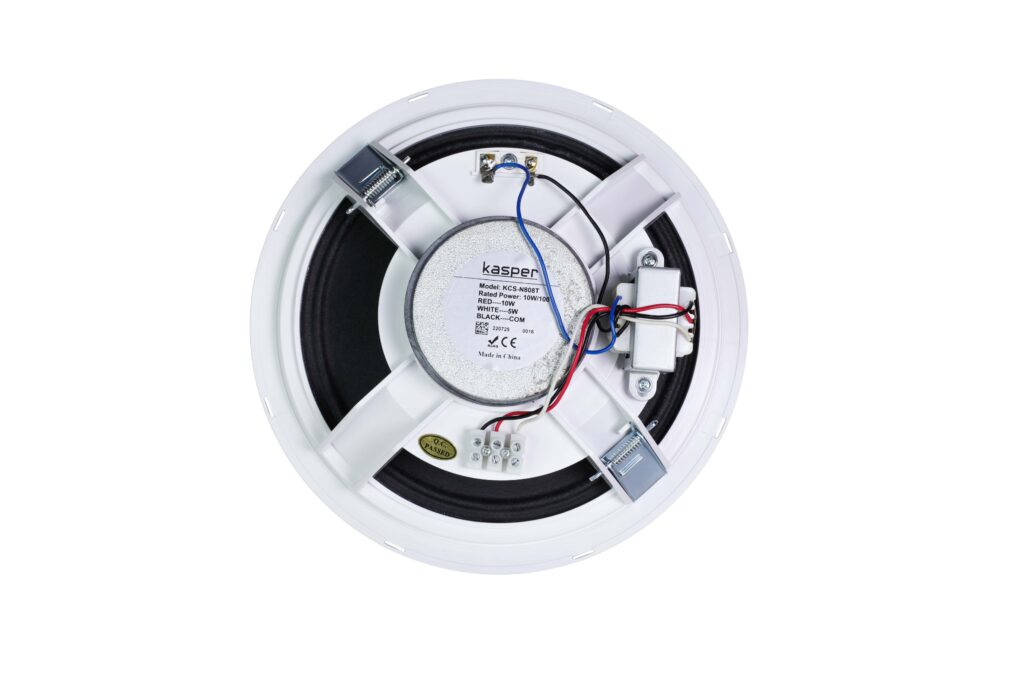

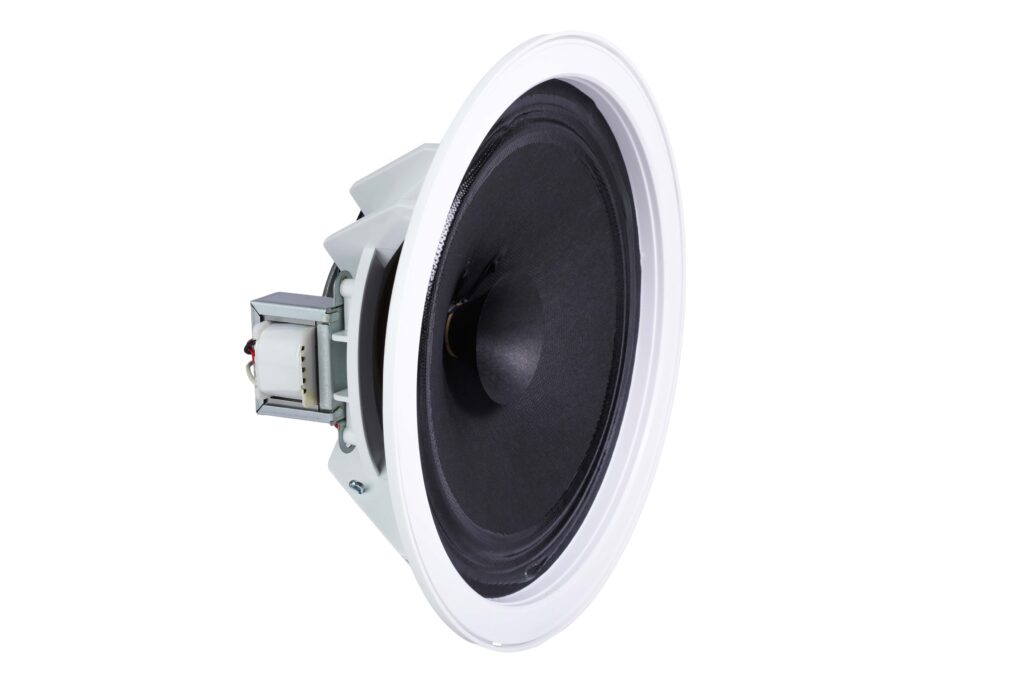

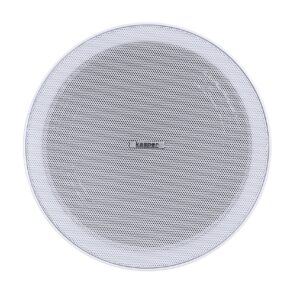

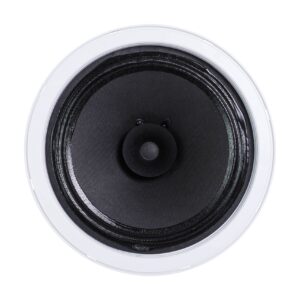

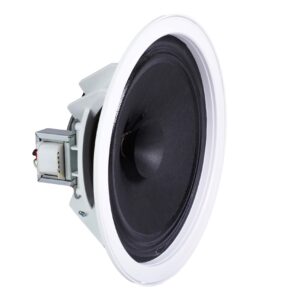

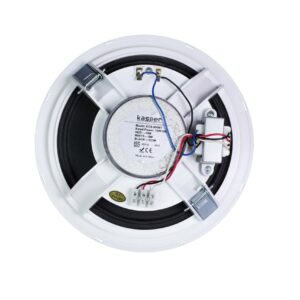

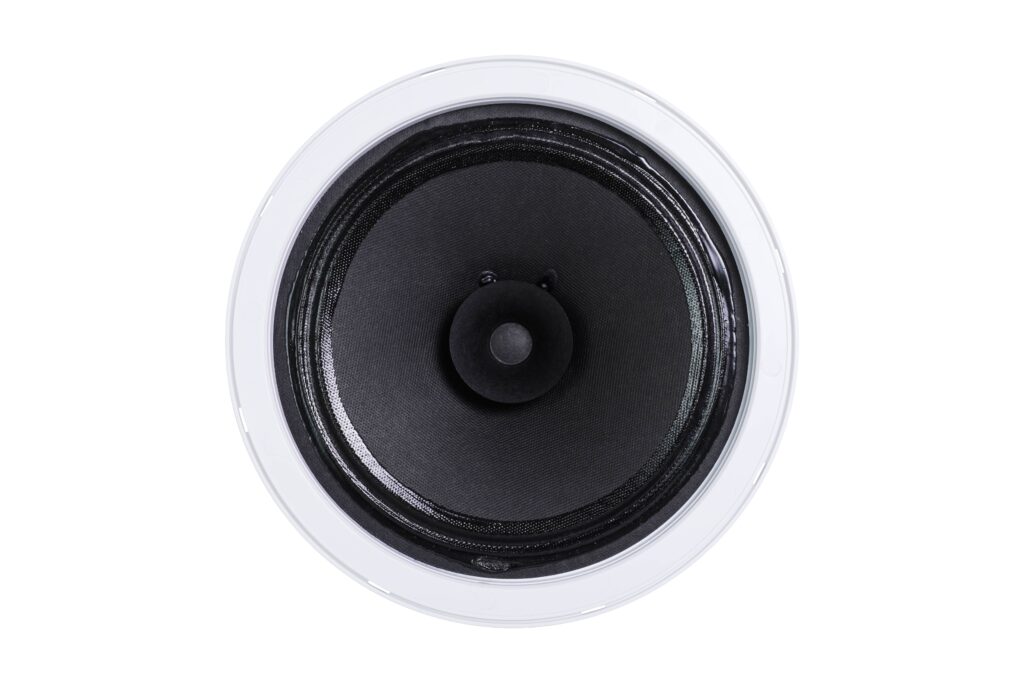

KCS-N808T

{Rimless Ceiling Speaker}

Power at 100V: 5/10W
Power at 70V: 2.5/5W
SPL( 1W/1M): 92dB
Max SPL@ 1M: 101dB
Freq. Response: 100Hz-18KHz
Cutout Size: Dia 210mm
Installation: Dia230x90mm(H)
Mounting Type: Inceiling
Enclosure Material: ABS
Weight: 1Kg
Finish: White
Speakers: 8″x1 full range

Read in PDF

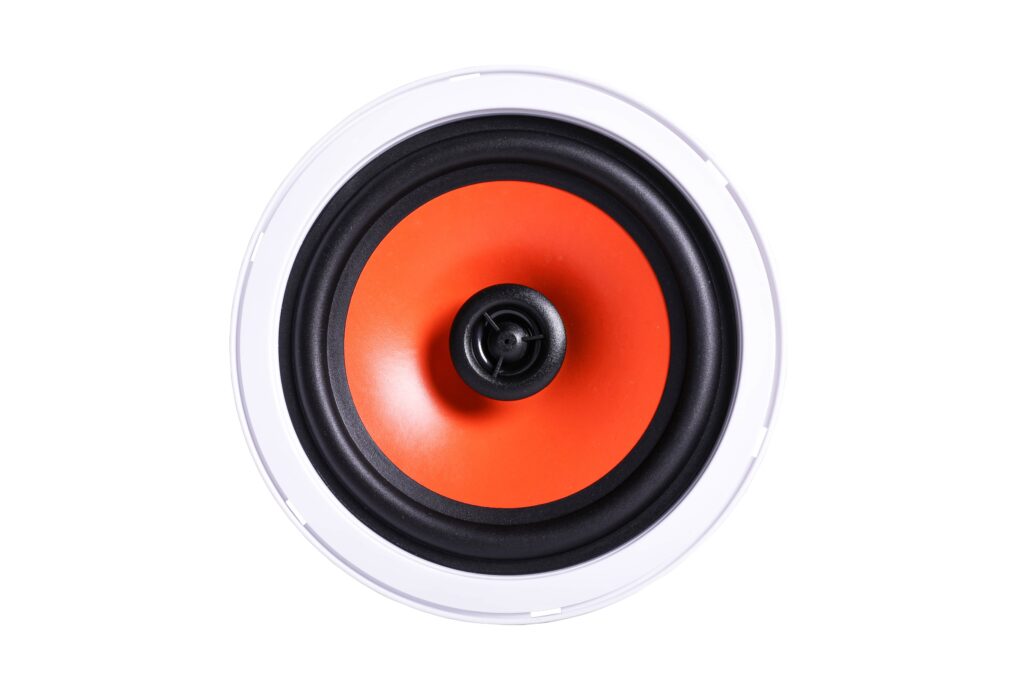

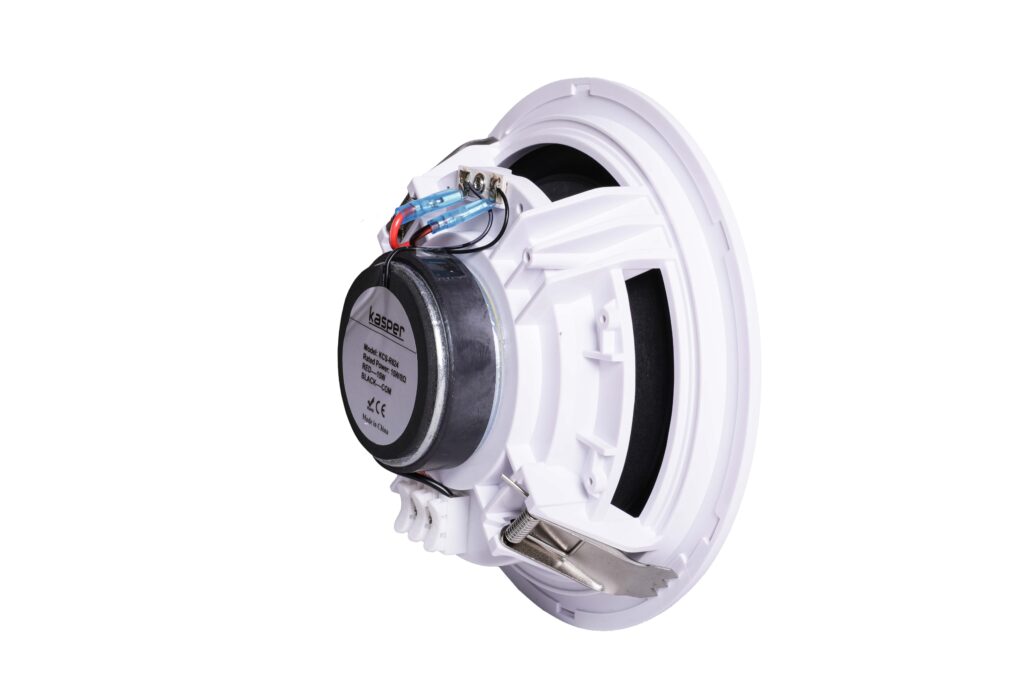

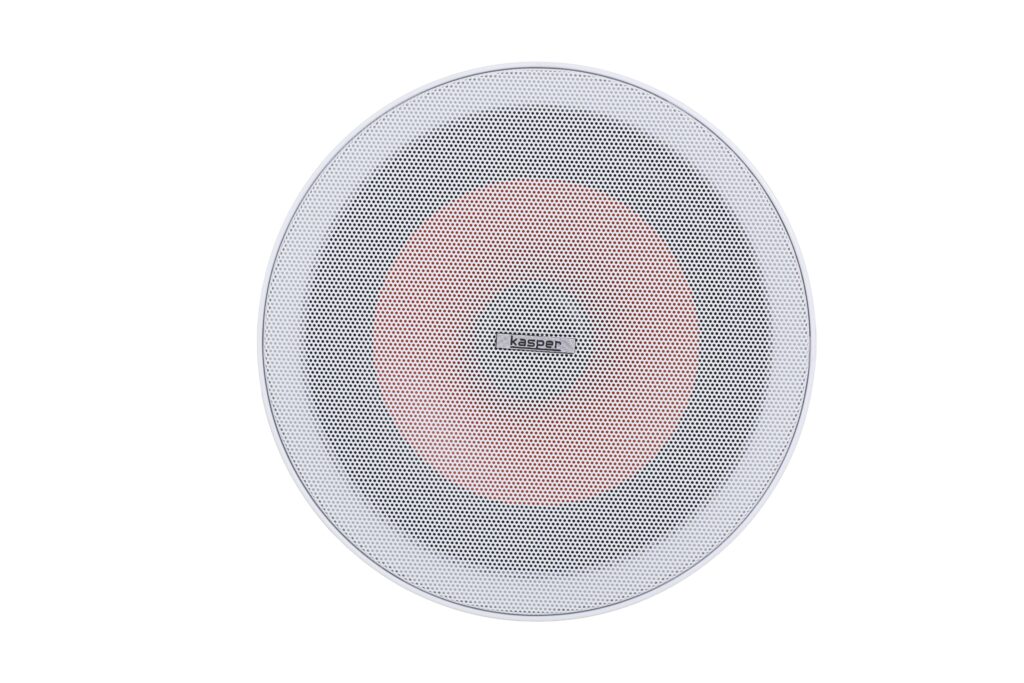

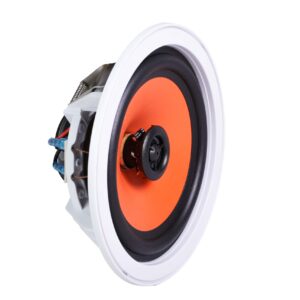

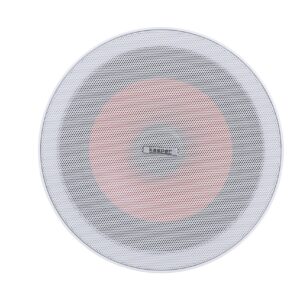

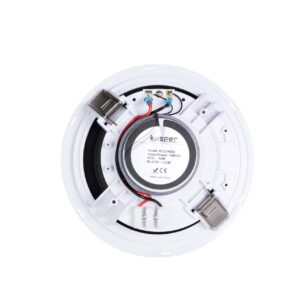

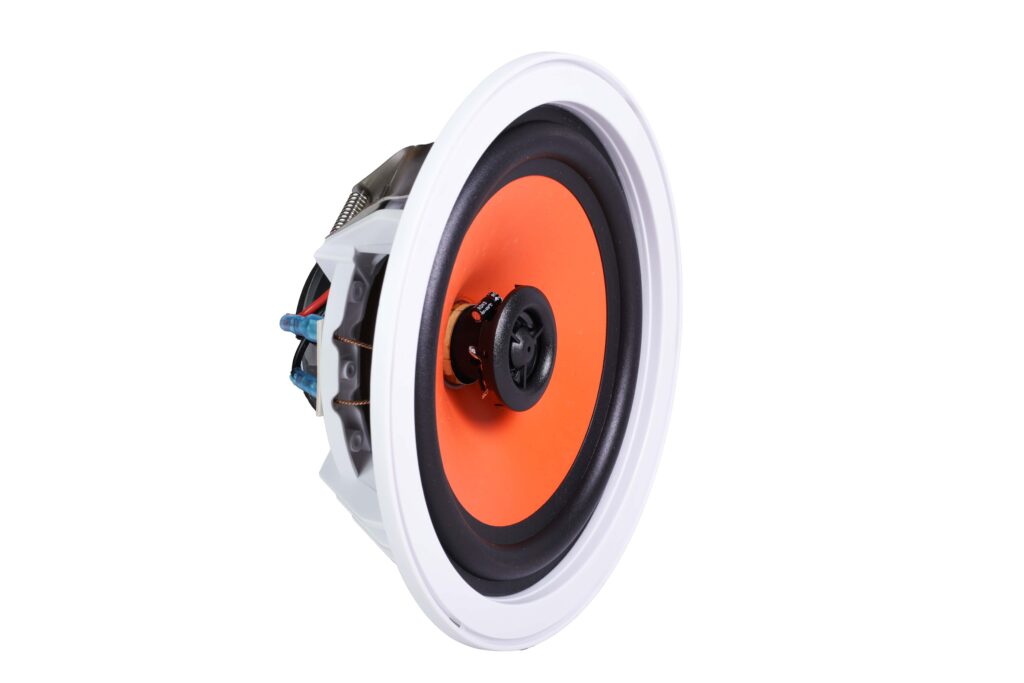

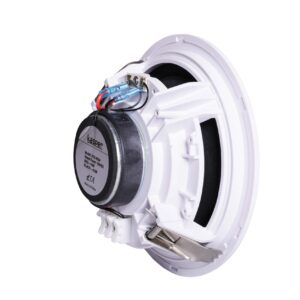

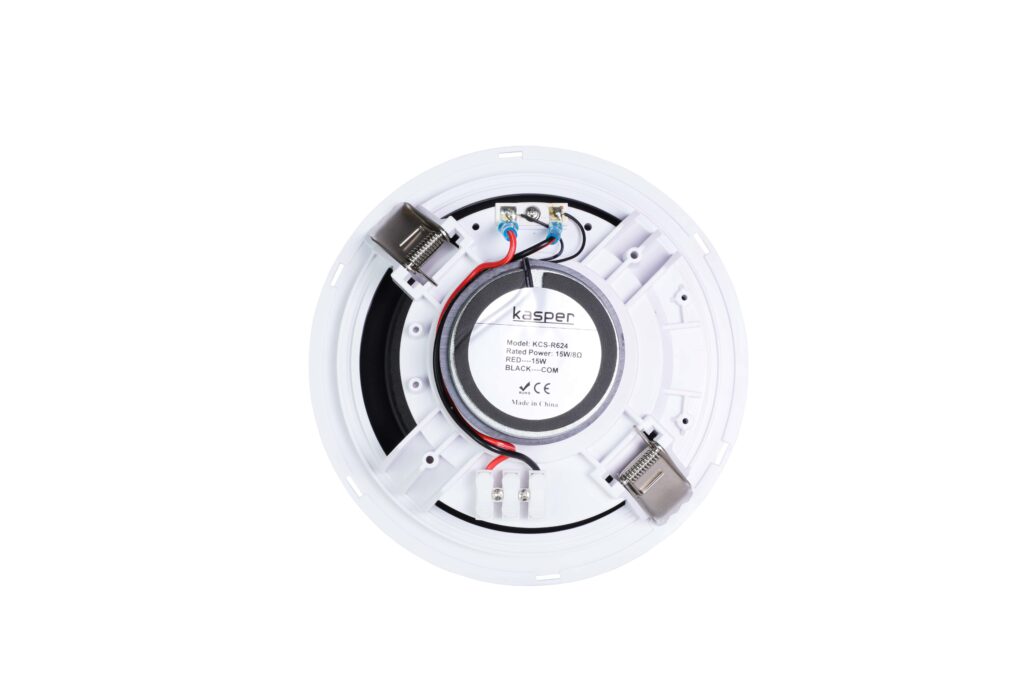

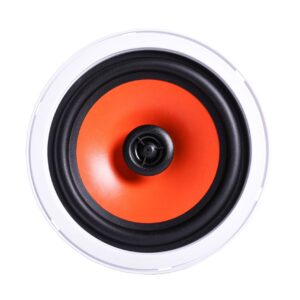

KCS-624 (Without Transformer )

{Rimless Ceiling Speaker}

Power at 100V/8 ohms: 30W peak at Ohms
SPL( 1W/1M): 89dB
Max SPL@1M: 101dB
Freq. Response: 65Hz-20KHz
Cutout Size: Dia 170mm
Speakers: Inceiling
Enclosure Material: ABS
Weight: 0.8KG
Finish: White
Installation: Dia 187x80mm(H)
Product Size: 1″ x1 (TREBLE) 6″x1(BASS)

Read in PDF

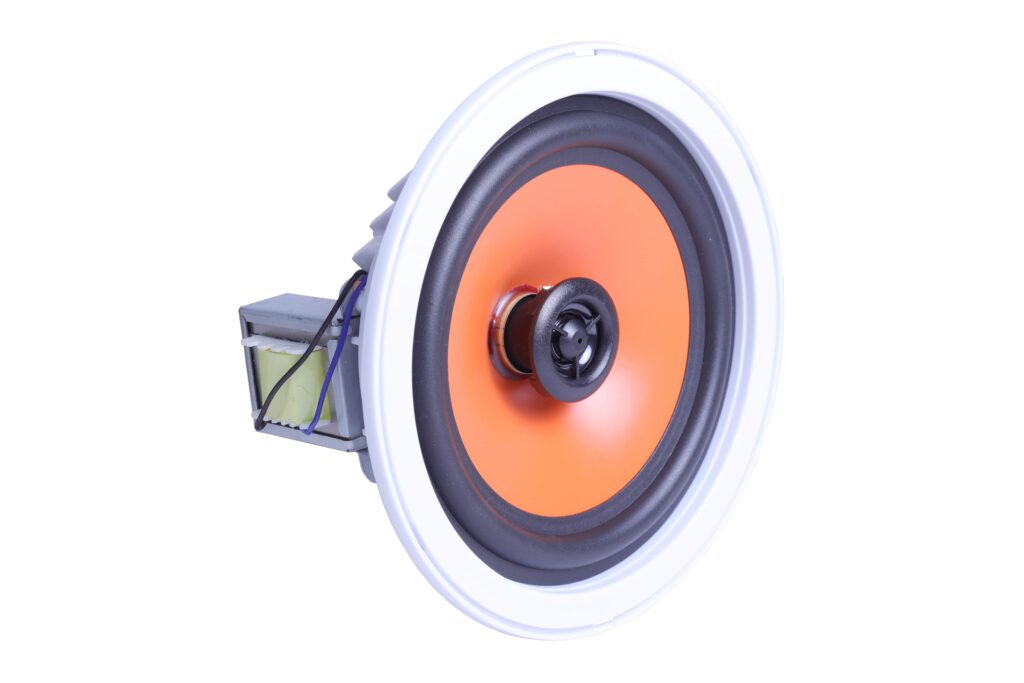

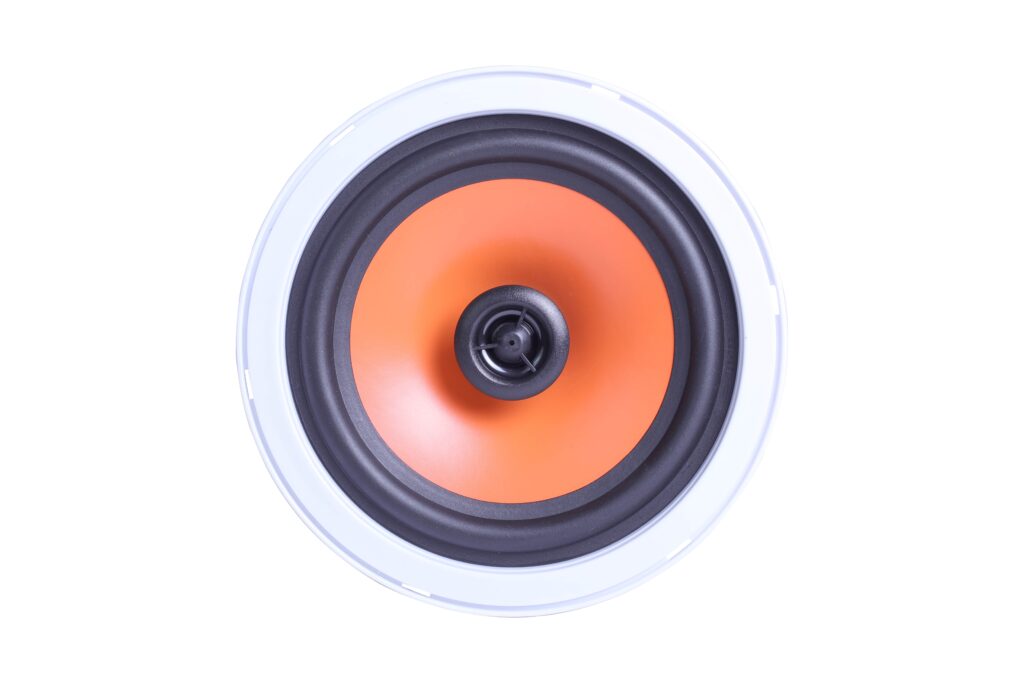

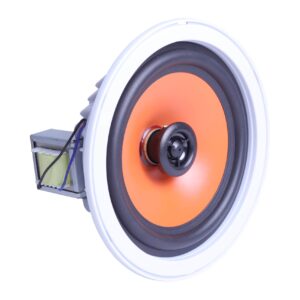

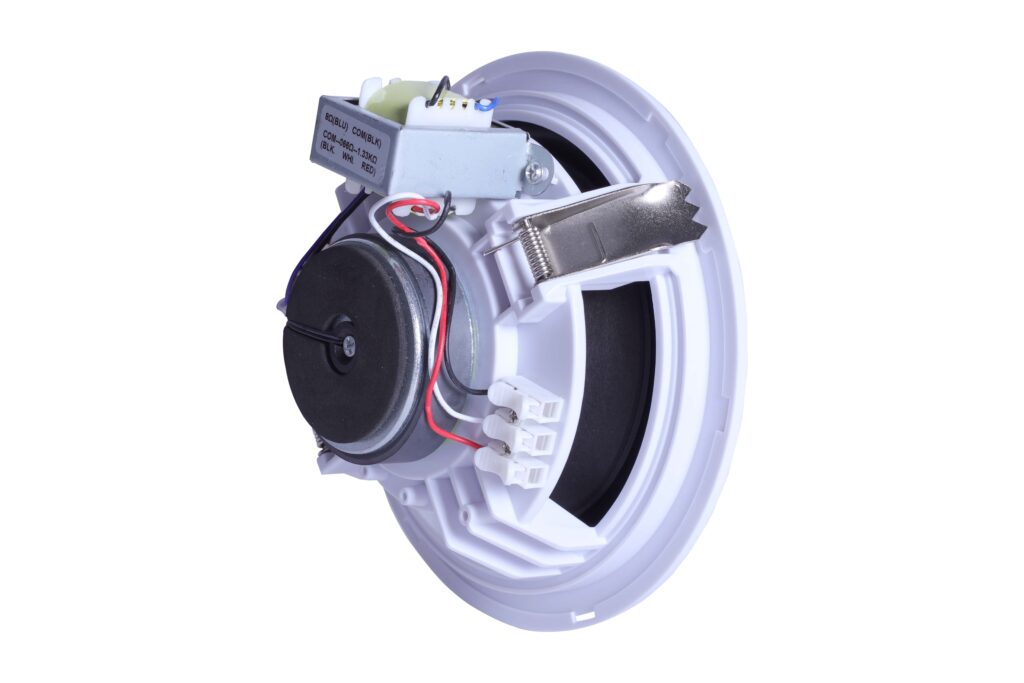

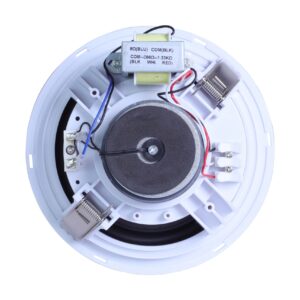

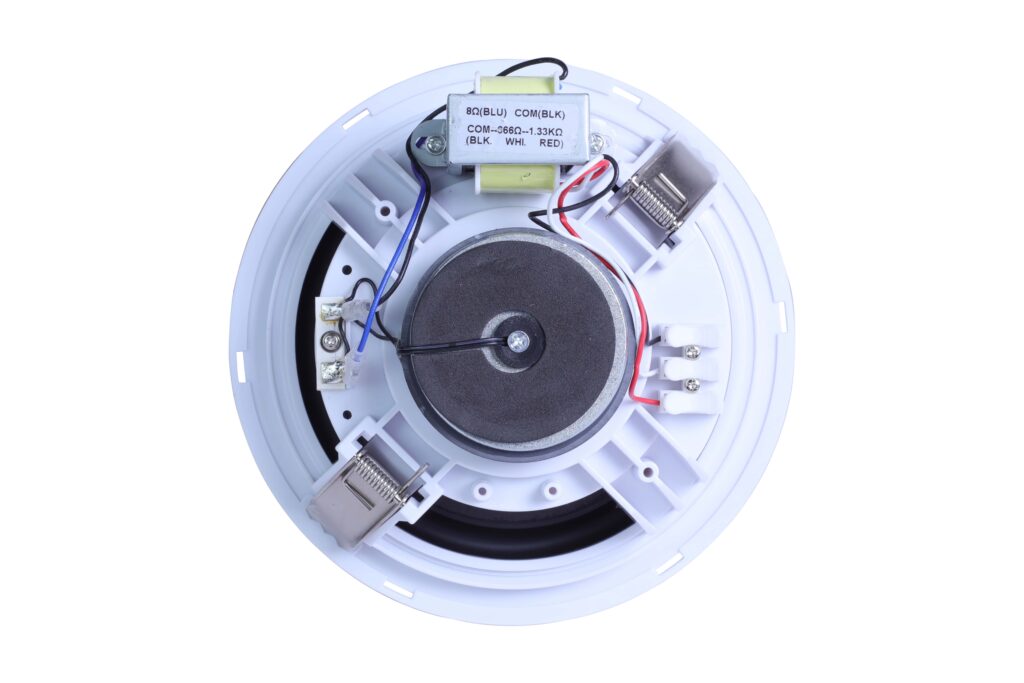

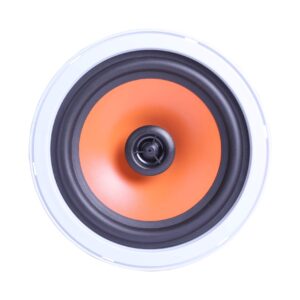

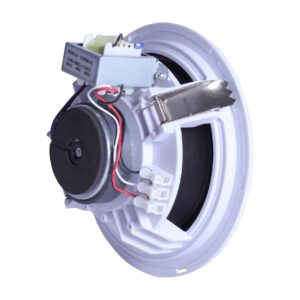

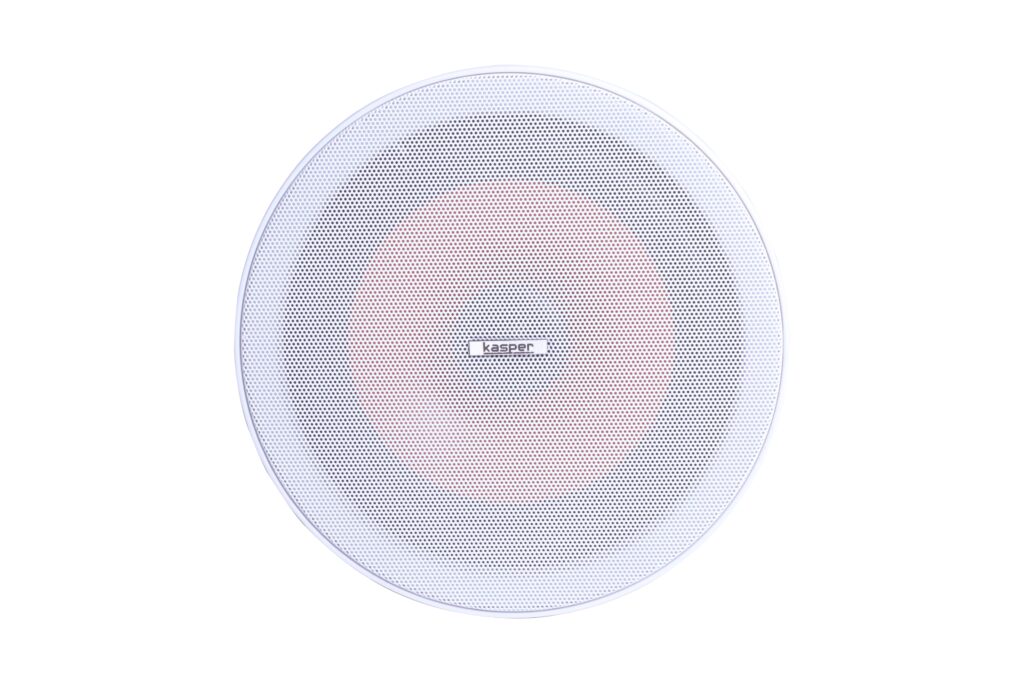

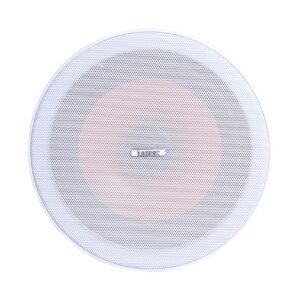

KCS-628T (With Transformer )

{Rimless Ceiling Speaker}

Power at 100V/8 ohms: 15W /7.5W
SPL( 1W/1M): 89dB
Max SPL@1M: 101dB
Freq. Response: 65Hz-20KHz
Cutout Size: Dia 170mm
Speakers: Inceiling
Enclosure Material: ABS
Weight: 1.0KG
Finish: White
Installation: Dia 187x87mm(H)
Product Size: 1″ x1 (TREBLE) 6″x1(BASS)

Read in PDF

Pendant Speakers

Fixed/ Pendant SpeakerFixed/ Pendant SpeakerFixed/ Pendant Speaker

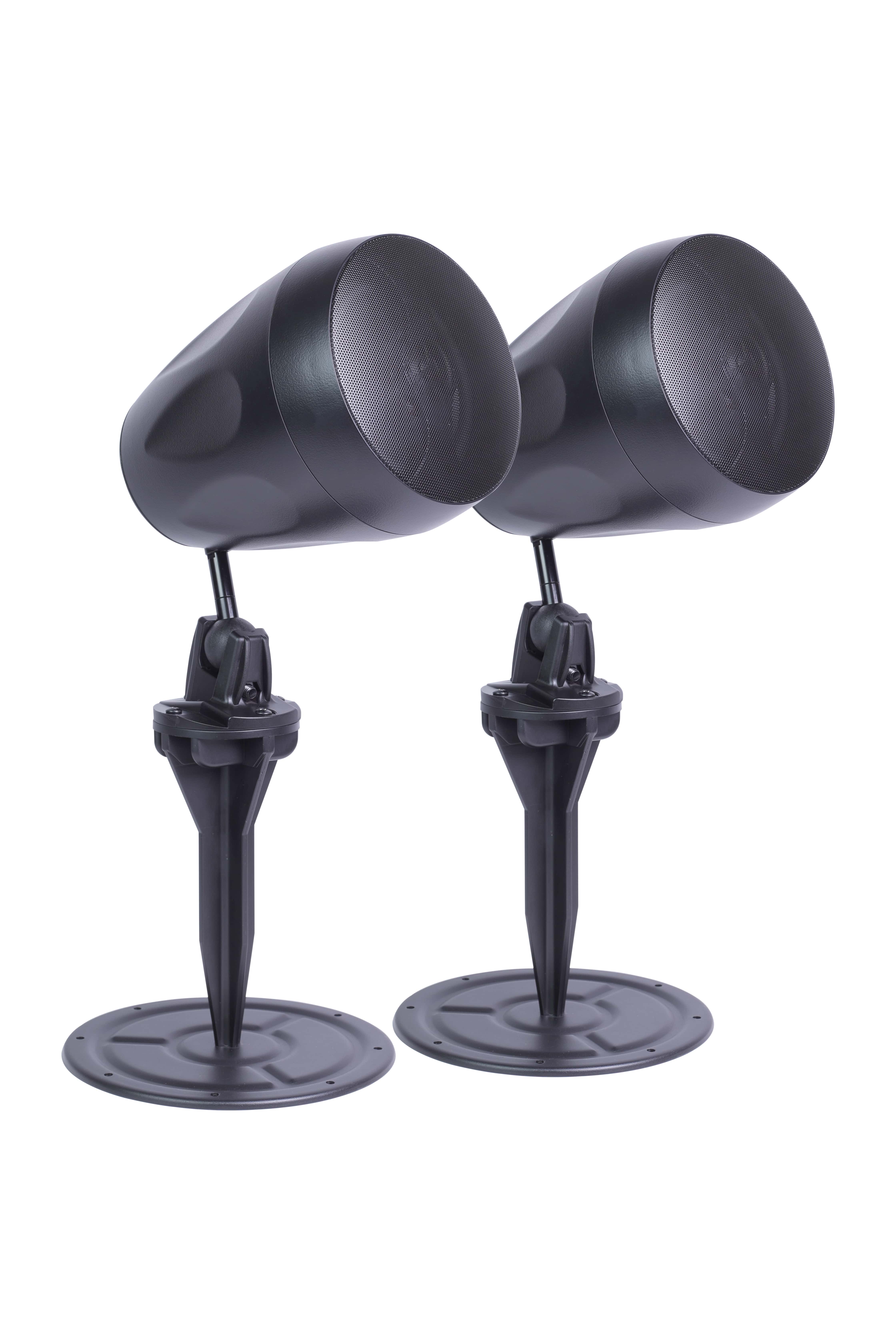

Outdoor All Weather Resistant in Ground Spike Stand Landscape Speaker

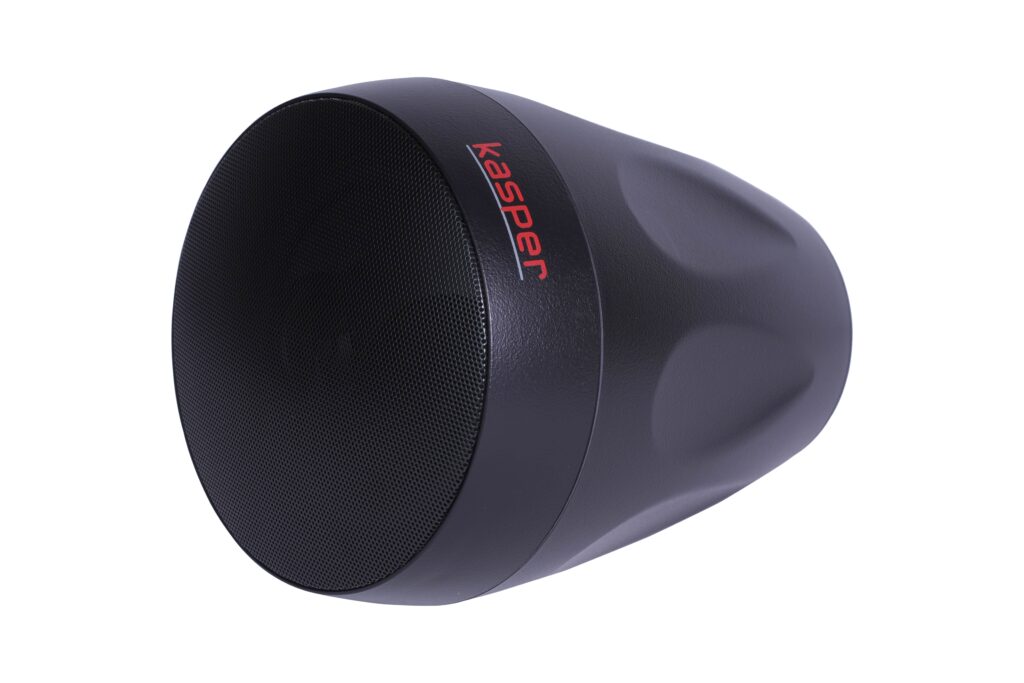

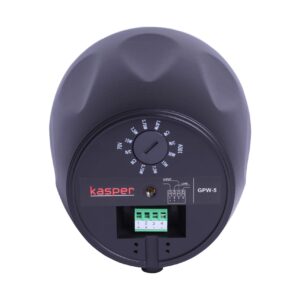

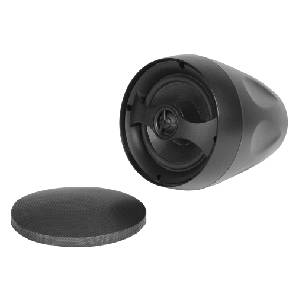

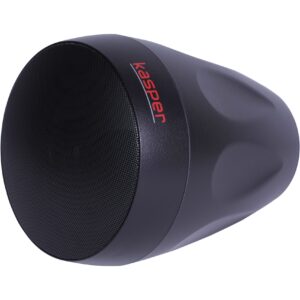

GPW530

Rated power: 30W
Power taps: 3.7/7.5/15/30W/0/8Ω
Output SPL: 84±3dB
Freq. Response: 118Hz~20KHz
LF Unit: 5.25″ graphite cone
HF Driver: 1″x1 silk dome
Waterproof: IP66
Dimension (H*W*D) (mm): 240 x 170 x 170
Net Weight (Kg): 2.4
Gross Weight (Kg): 8.5 (2pcs)
Packing Dimension (L*W*H) (mm):
510 x 440 x 270

Read in PDF

InkLine- Line Arrays

InkLine SERIESInkLine SERIESInkLine SERIES

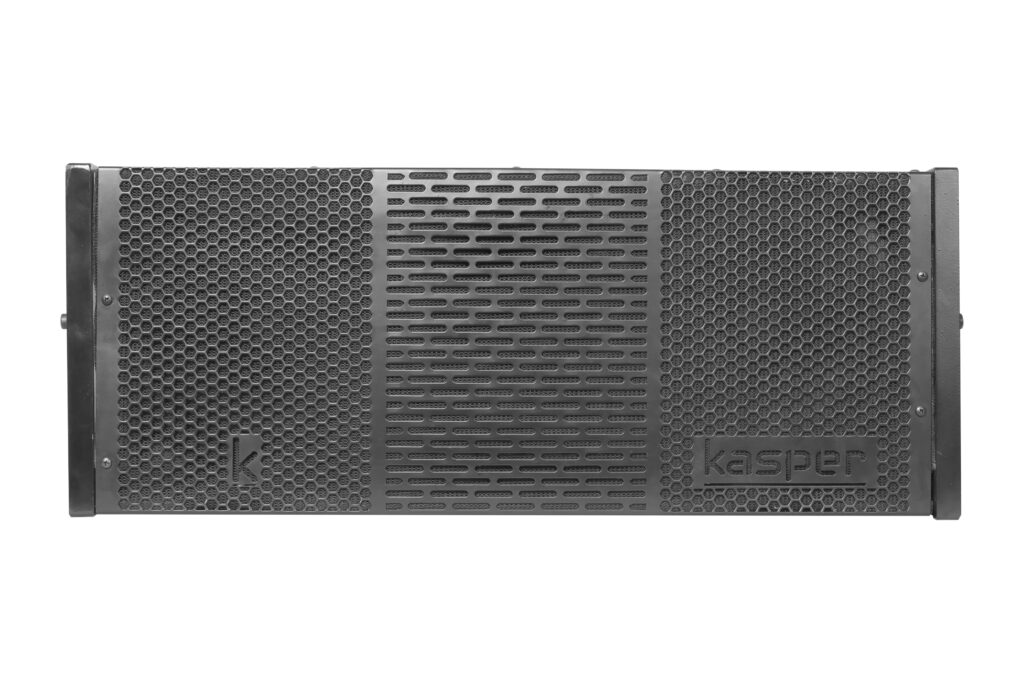

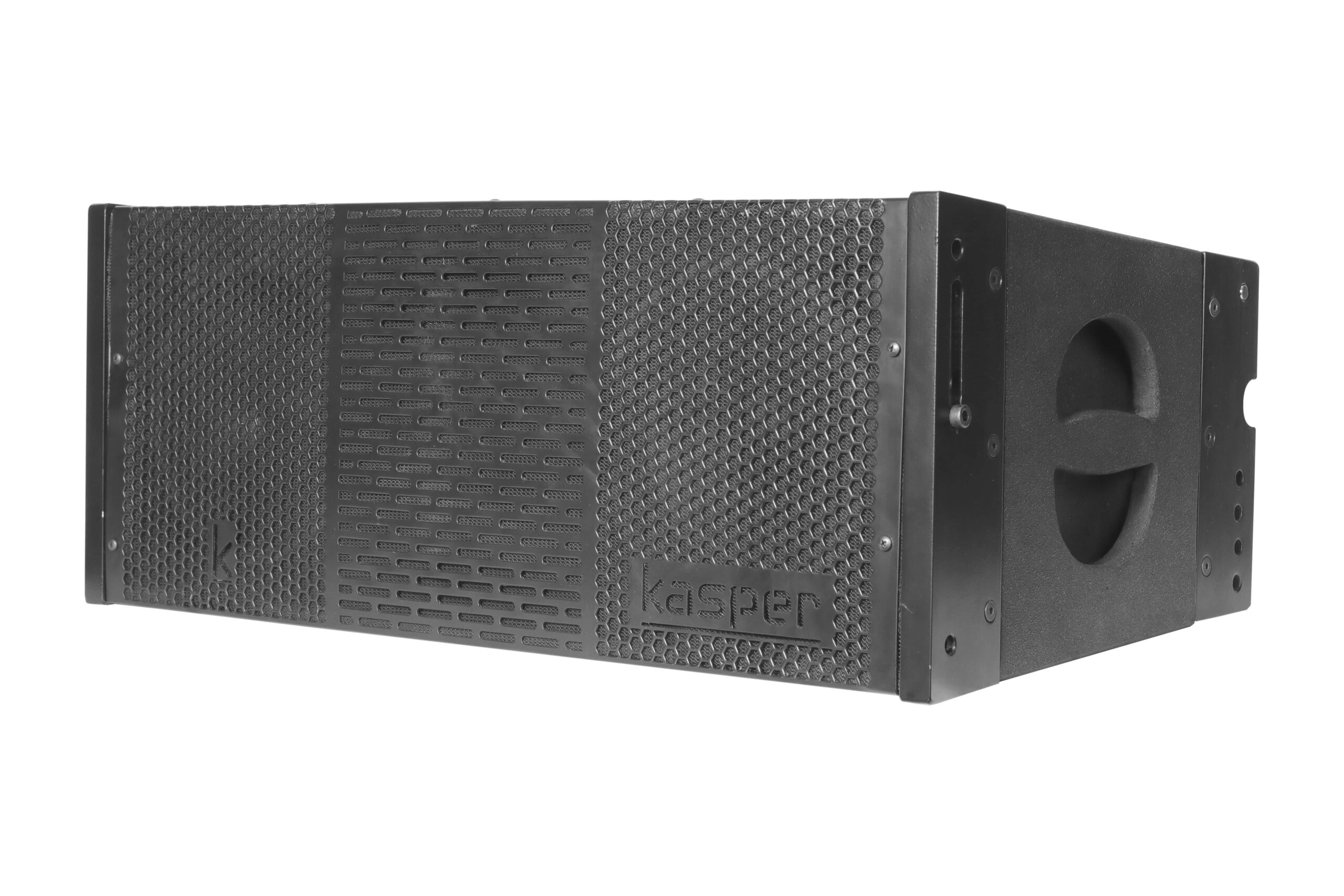

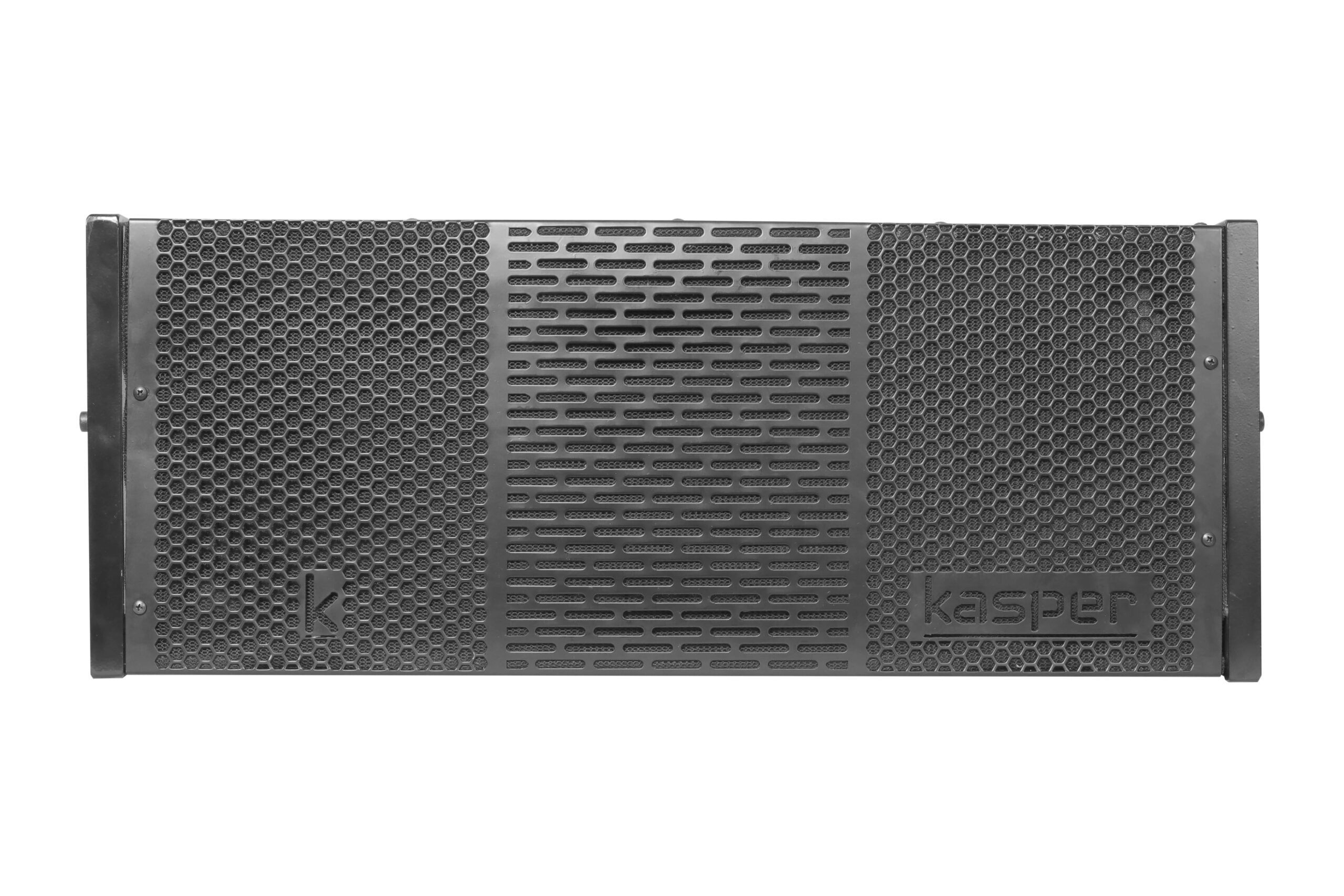

KLA-D84

{Compact Line Array Speakers for Installs to match with KUA Subwoofers & Klout speakers for sidefills and delays}

Speaker Type: Dual 8″ + Compression Driver, Passive /Biamp
Frequency Response: 78Hz – 20KHz
Impedance: LF at 4Ω / HF at 8Ω
Watts: 500 RMS Watts/ 1000 Watts Peak Power
Max SPL: 130 dB
HF: 1″ compression driver
Voice Coil: 1″
Directivity: 115° x 10°
LF: 8″ x 2
Voice Coil: 2.5″ neodymium driver
Crossover Point: 1.2KHz
Input: 2 x NL4
Housing: Marine Ply, Polyurea Painted
Rigging Points: Integrated Rigging Hardware

Read in PDF

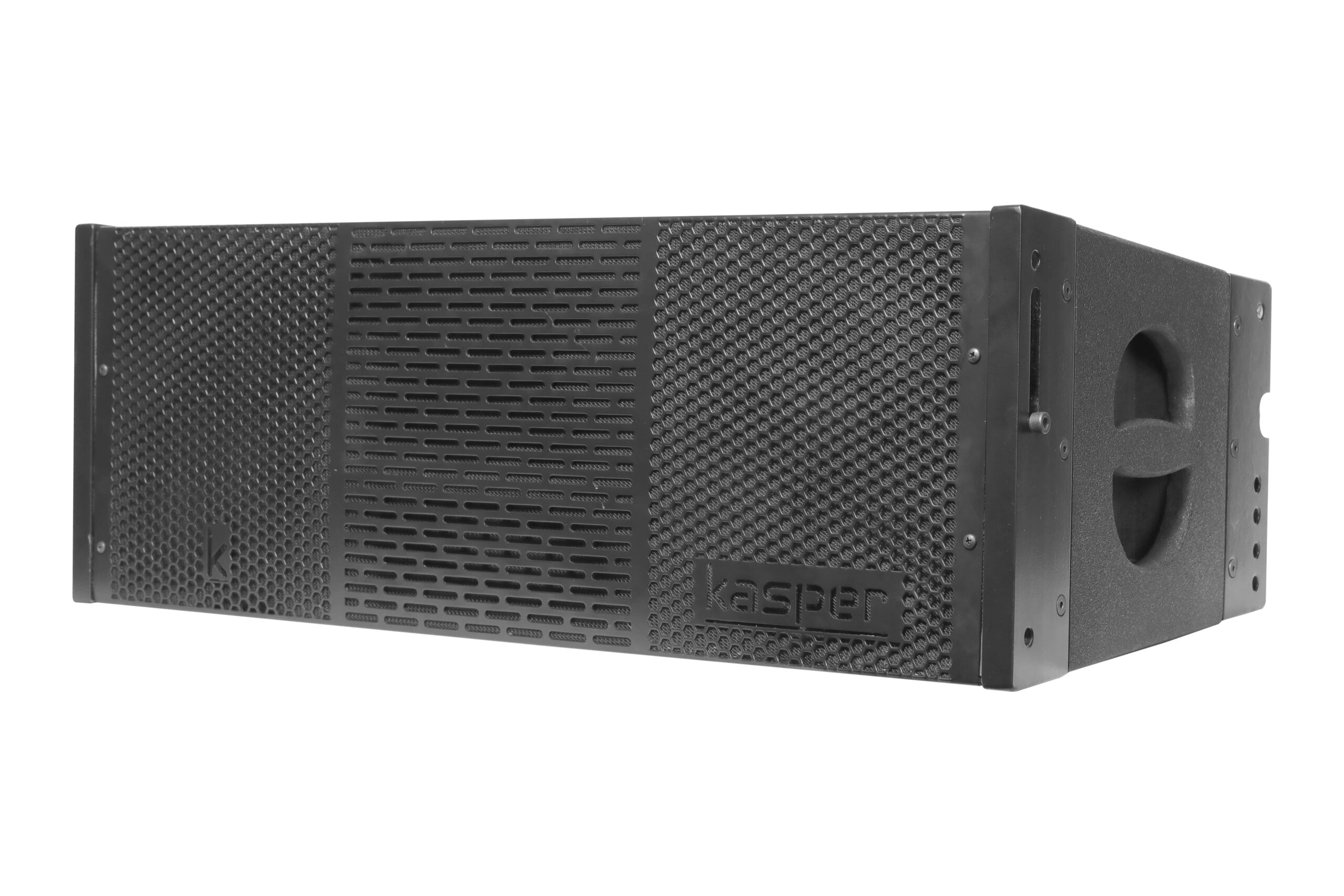

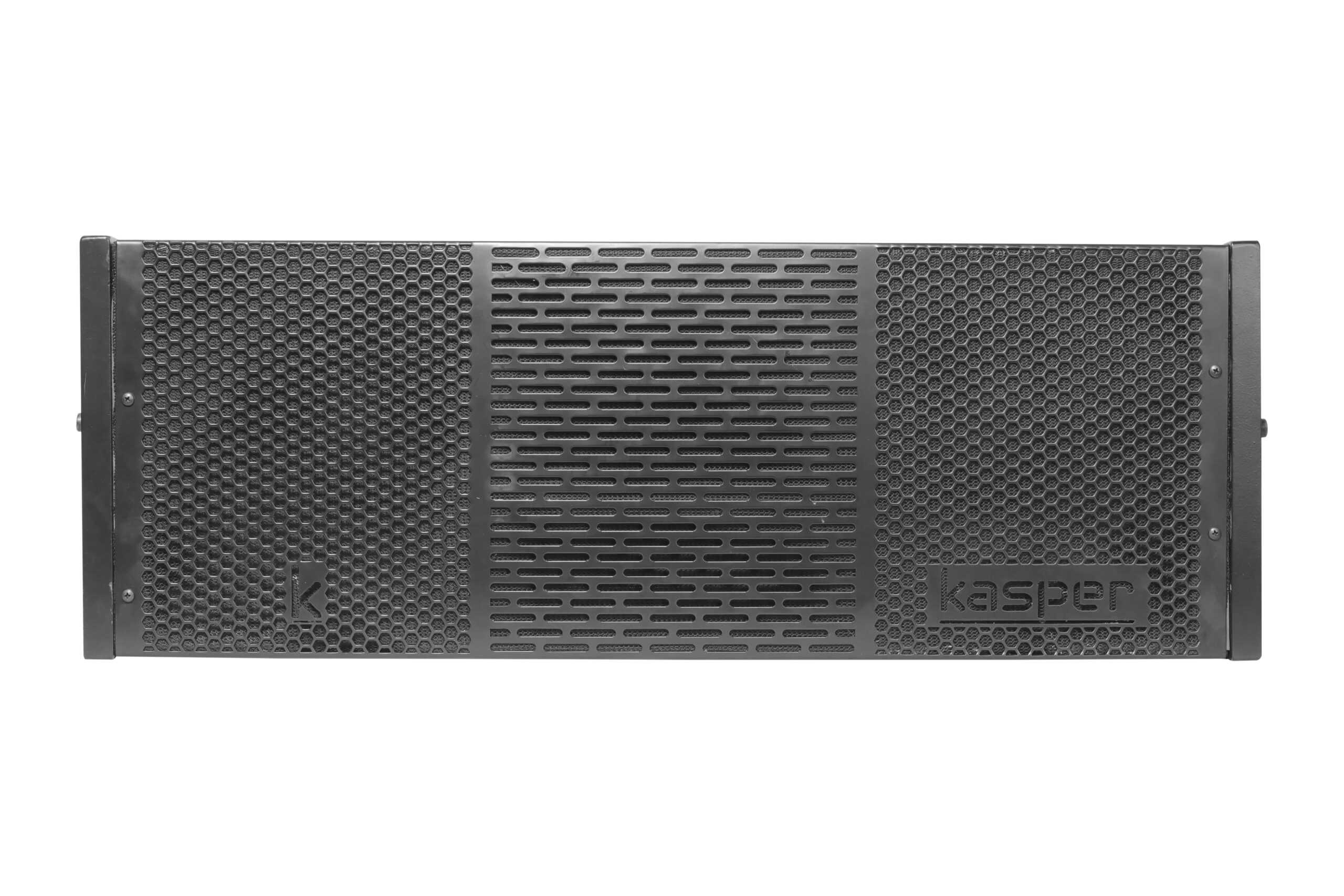

KLA-D106

{Compact Line Array Speakers for Installs to match with KUA Subwoofers & Klout speakers for sidefills and delays}

Speaker Type: Dual 10″ + Compression Driver, Passive /Biamp
Frequency Response: 60Hz – 20KHz
Impedance: LF at 4Ω / HF at 8Ω
Watts: 800 RMS Watts/ 1600 Watts Peak Power
Max SPL: 132 dB
HF: 1″ compression driver
Voice Coil: 1″
Directivity: 115° x 10°
LF: 10″ x 2
Voice Coil: 3″ neodymium driver
Crossover Point: 1.2KHz
Input: 2 x NL4
Housing: Marine Ply, Polyurea Painted
Rigging Points: Integrated Rigging Hardware

Read in PDF

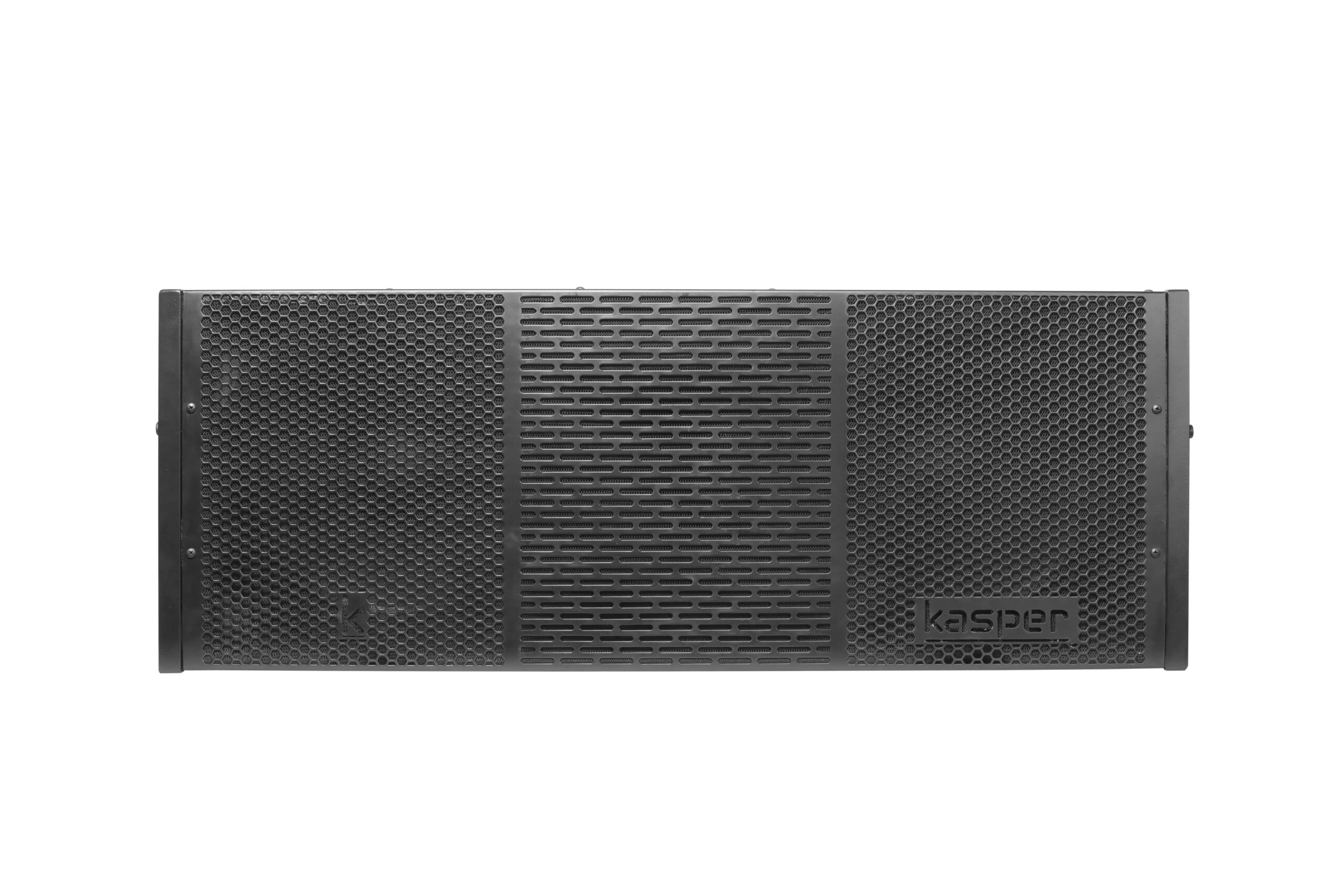

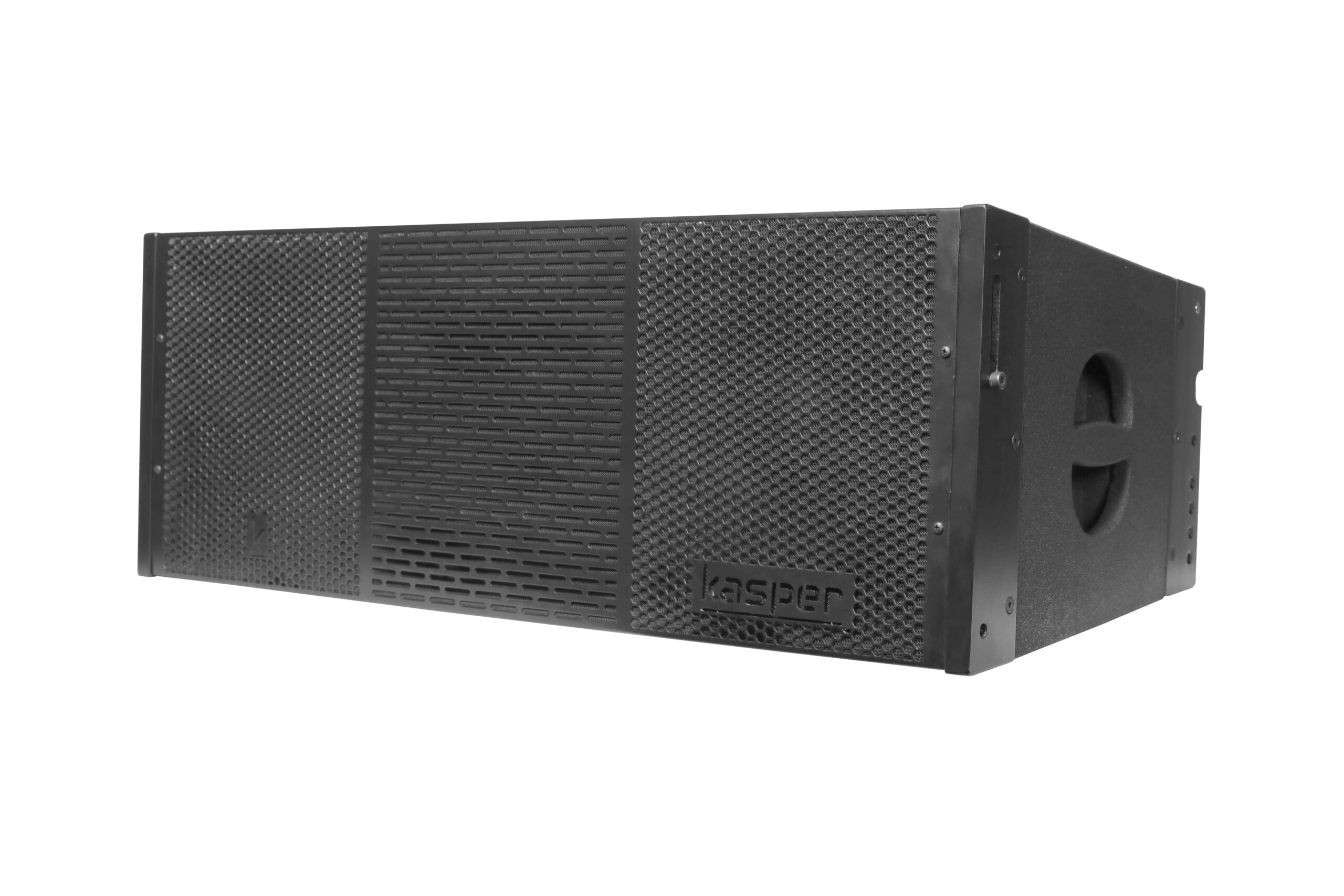

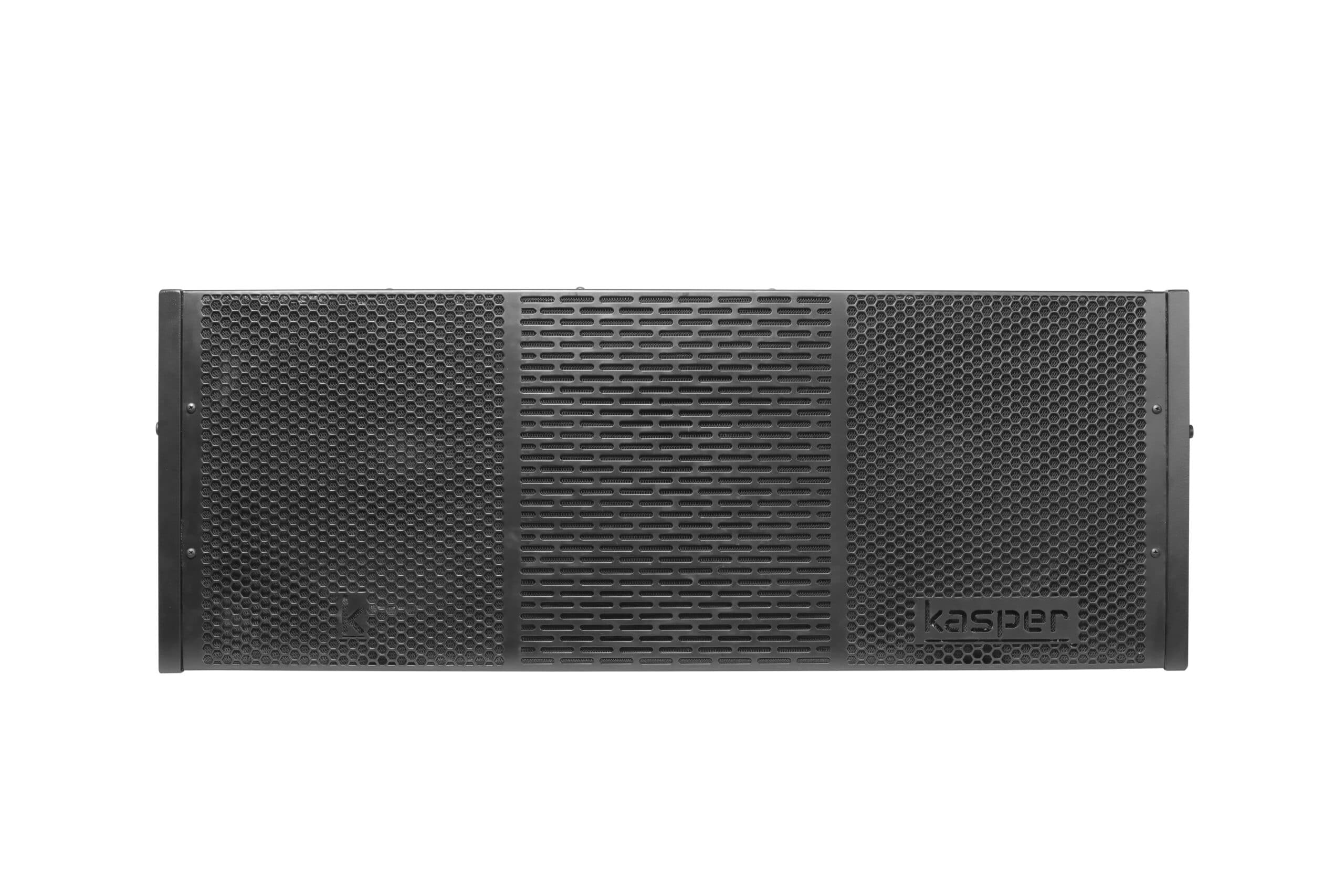

KLA-D1212

{Compact Line Array Speakers for Installs to match with KUA Subwoofers & Klout speakers for sidefills and delays}

Speaker Type: Dual 12″ + Compression Driver, Passive /Biamp
Frequency Response: 60Hz – 20KHz
Impedance: LF at 4Ω / HF at 8Ω
Watts: 1200 RMS Watts/ 1600 Watts Peak Power
Max SPL: 135 dB
HF: 1″ compression driver
Voice Coil: 1″
Directivity: 115° x 10°
LF: 12″ x 2
Voice Coil: 4″ neodymium driver
Crossover Point: 1.2KHz
Input: 2 x NL4
Housing: Marine Ply, Polyurea Painted
Rigging Points: Integrated Rigging Hardware

Read in PDF

Mid Top Speaker

KLout SERIESKLout SERIESKLout SERIES

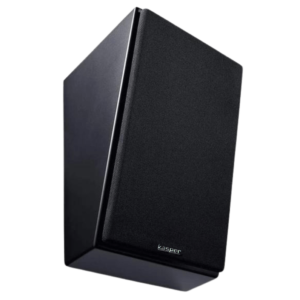

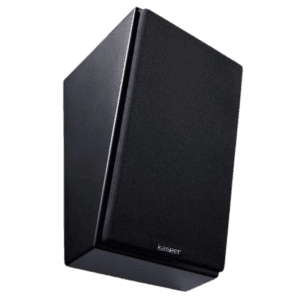

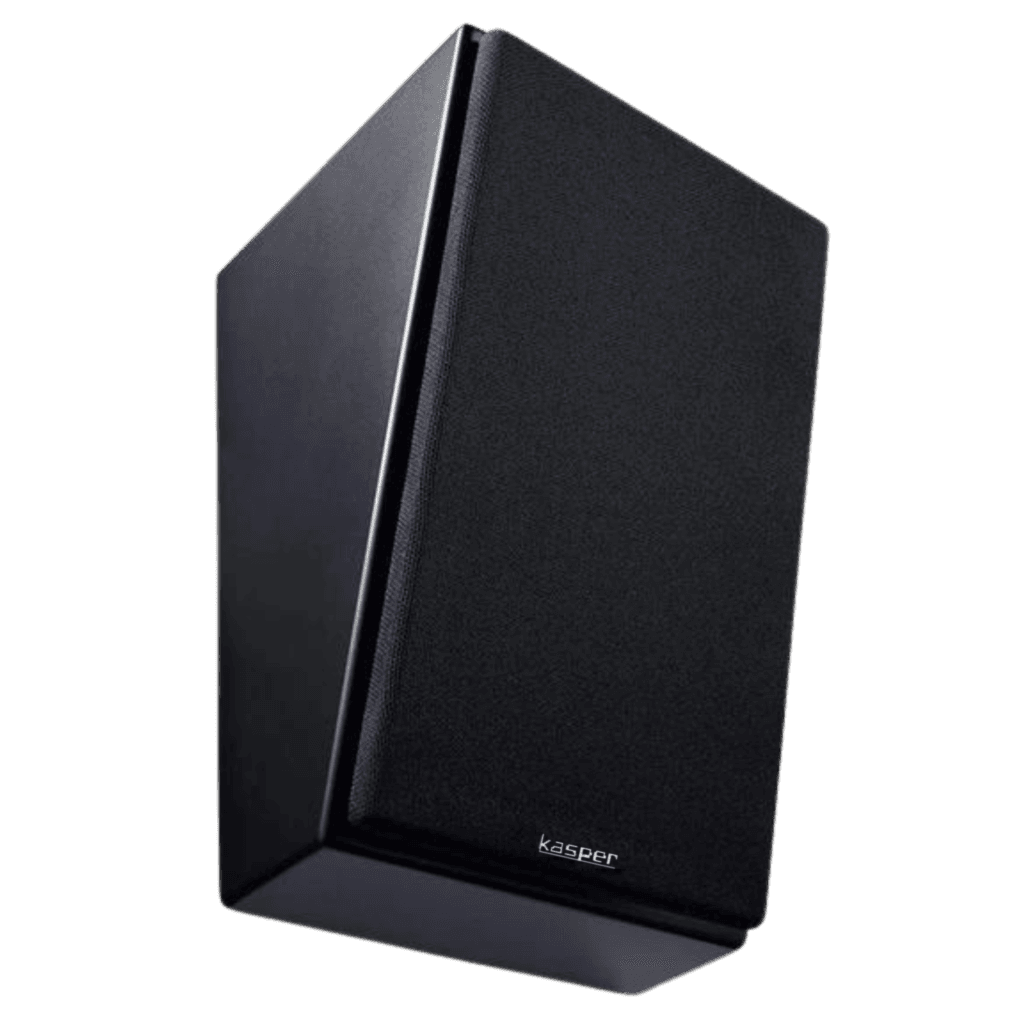

KLout 208

{Indoor Point Source Passive Speaker for Installs and Home Theatres. Available in Black & White color options}

Speaker Type: Dual 8″ + Compression Driver, Passive /Biamp
Frequency Response: 65Hz – 18KHz
Impedance: 8Ω
Watts: 200 RMS Watts/ 400 Watts Peak Power
Max SPL: 120 dB
HF: 0.75″ compression driver
Voice Coil: 1″
Directivity: 8° x 40°
LF: 80″ x 1
Voice Coil: 1.5″ neodymium driver
Crossover Point: 1.2KHz
Input: 2 x NL4
Housing: Marine Ply, Polyurea Painted
Dimensions (W x H x D): 270 mm x 480 mm x 260 mm
Net weight: 2.5 kg

Read in PDF

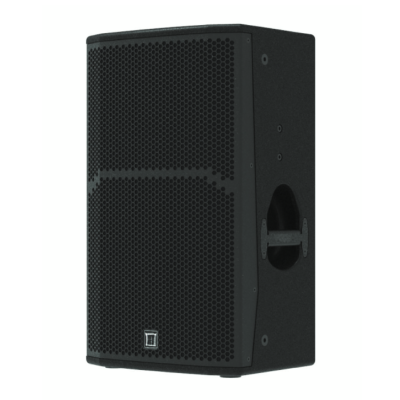

KLout 312

{Indoor Point Source Passive Speaker for Installs and Home Theatres. Available in Black & White color options}

Speaker Type: Single 12″ Full Range Speaker
Frequency Response: 55Hz – 20KHz
Impedance: 8Ω
Watts: 300 RMS Watts/ 600 Watts Peak Power
Max SPL: 125 dB
HF: 0.75″ compression driver
Voice Coil: 1″
Directivity: 80° x 40°
LF: 12″ x 1
Voice Coil: 1.7″ neodymium driver
Crossover Point: 1.2KHz
Input: 2 x NL4
Housing: Marine Ply, Polyurea Painted
Dimensions (W x H x D): 380 mm x 595 mm x 370 mm
Net weight: 18.5 kg

Read in PDF

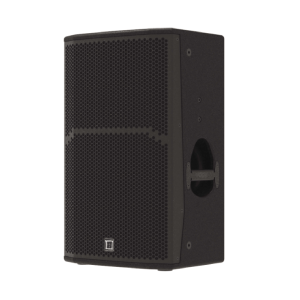

KLout 415

{Indoor Point Source Passive Speaker for Installs and Home Theatres. Available in Black & White color options}

Speaker Type: Single 15″ Full Range Speaker
Frequency Response: 40Hz – 20KHz
Impedance: 8Ω
Watts: 400 RMS Watts/ 800 Watts Peak Power
Max SPL: 125 dB
HF: 0.75″ compression driver
Voice Coil: 1″
Directivity: 80° x 40°
LF: 15″ x 1
Voice Coil: 1.7″ neodymium driver
Crossover Point: 1.2KHz
Input: 2 x NL4
Housing: Marine Ply, Polyurea Painted
Dimensions (W x H x D): 455 mm x 695 mm x 390 mm
Net weight: 25.5 kg

Read in PDF

Theater Definition

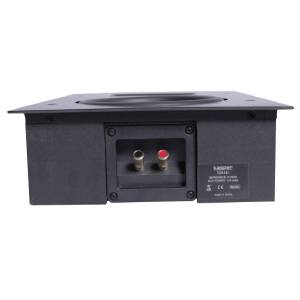

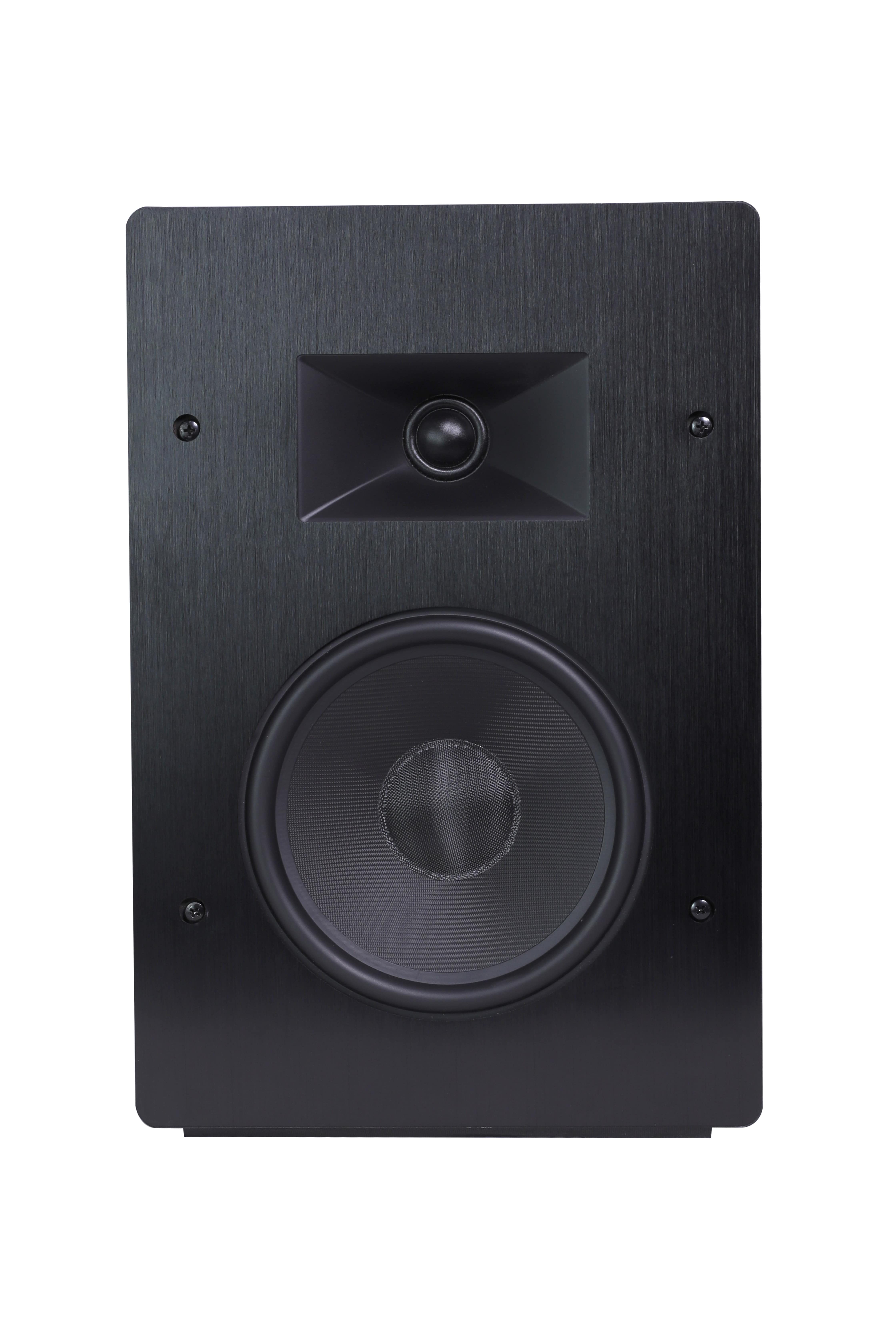

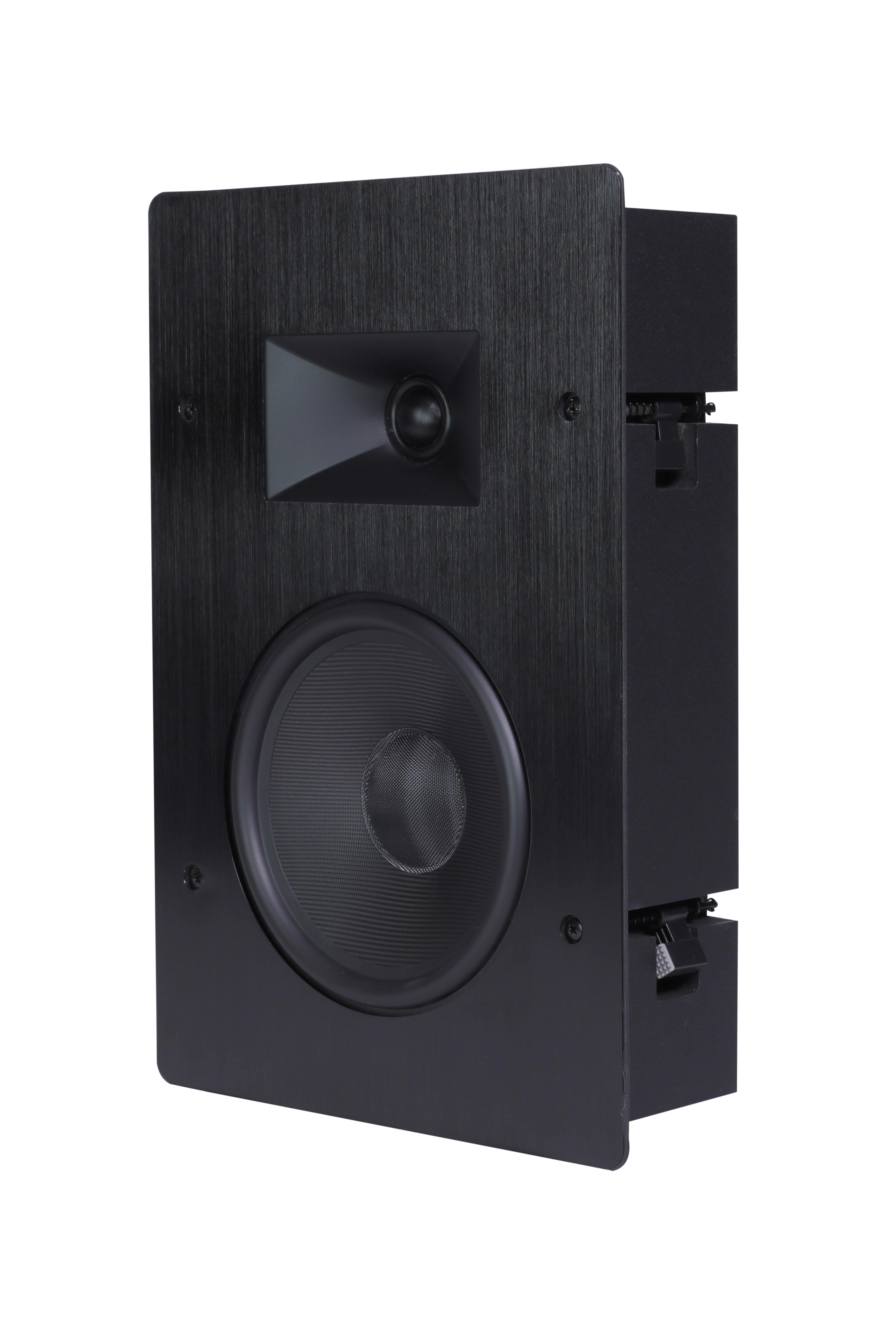

TD118i

Frequency response: 100~20K Hz
Power Handling (RMS): 60~120W
Sensitivity: 89dB
Impedance: 8 ohm
Tweeter: 8″ Driver
Woofer: 8″ Cone Rubber
Product Size: 423 x 293 x 107.4 mm
Cut Out Dimension: 383 x 253 x 95 mm
Inner Carton Size: 482 x 360 x 236 mm
Master Carton SizeSPER: 492 x 370 x 260 mm

Read in PDF

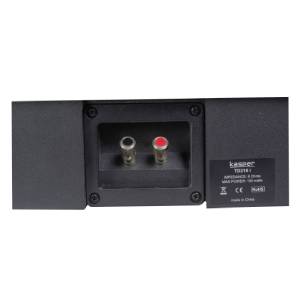

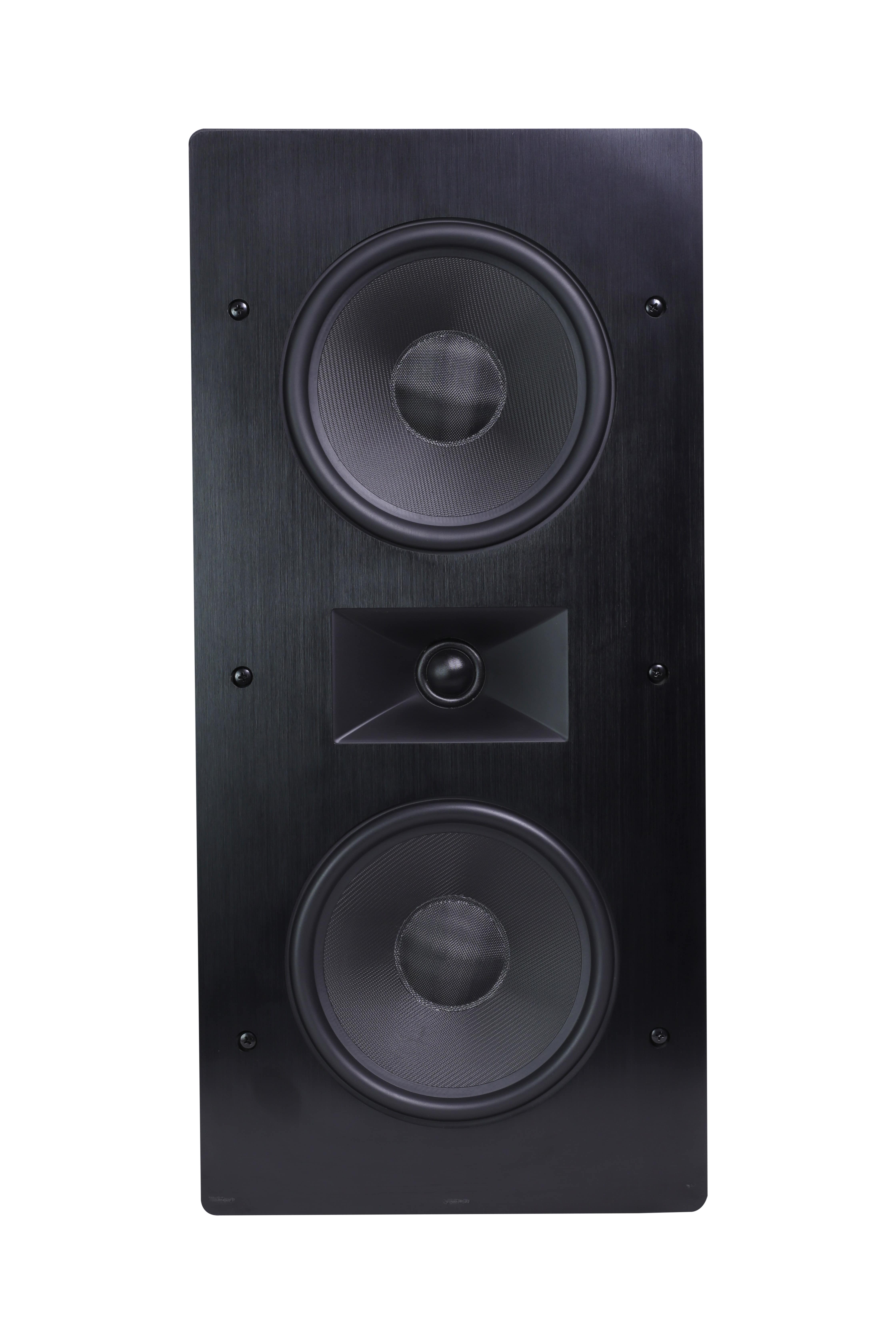

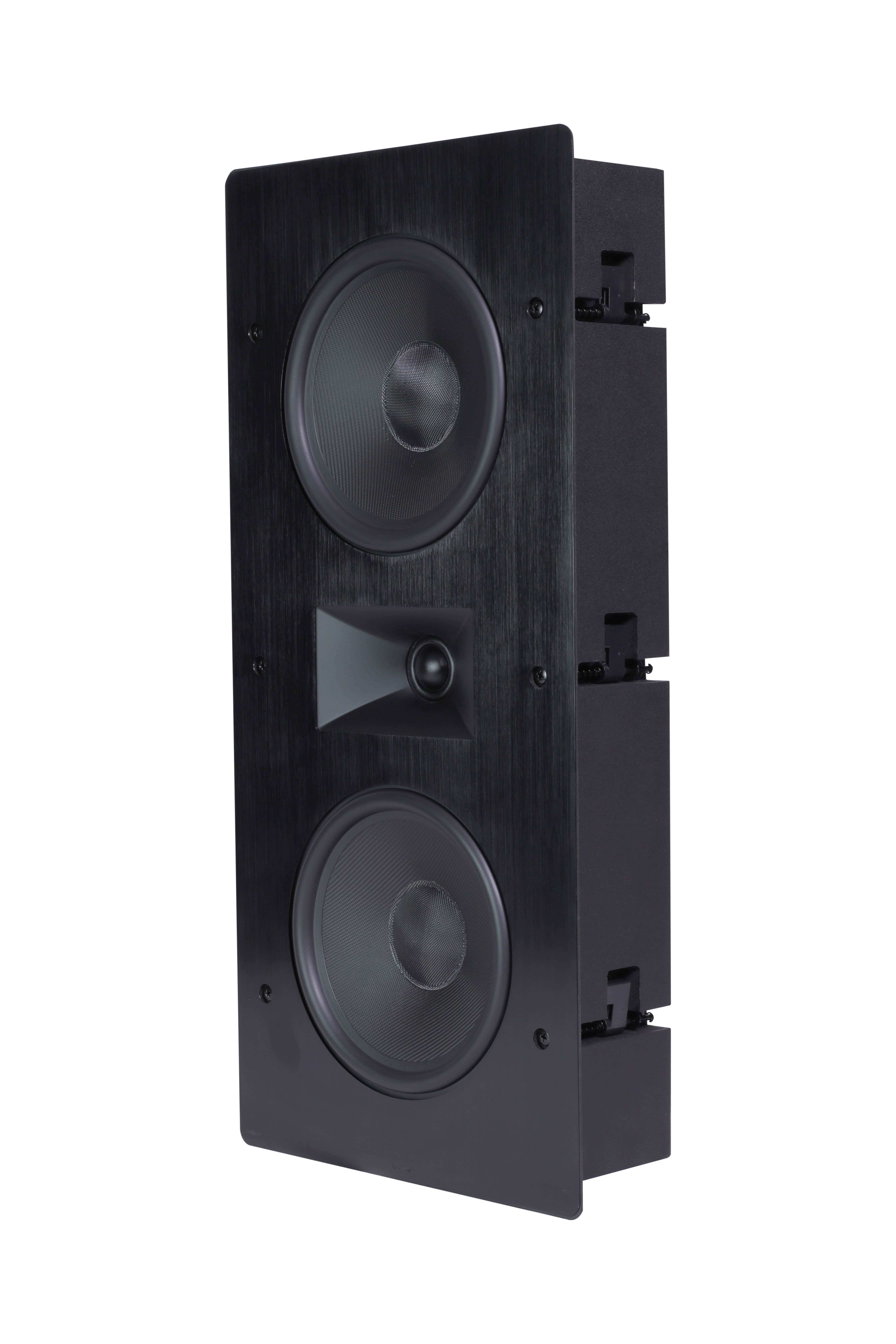

TD218i

Frequency response: 100~20K Hz
Power Handling (RMS): 80~160W
Sensitivity: 89dB
Impedance: 8 ohm
Tweeter: 8″ Driver
Woofer: 2×8″ Cone Rubber
Product Size: 608.5 x 293 x 107.4 mm
Cut Out Dimension: 658 x 253 x 95 mm
Inner Carton Size: 667 x 360 x 236 mm
Master Carton SizeSPER: 667 x 360 x 236 mm

Read in PDF

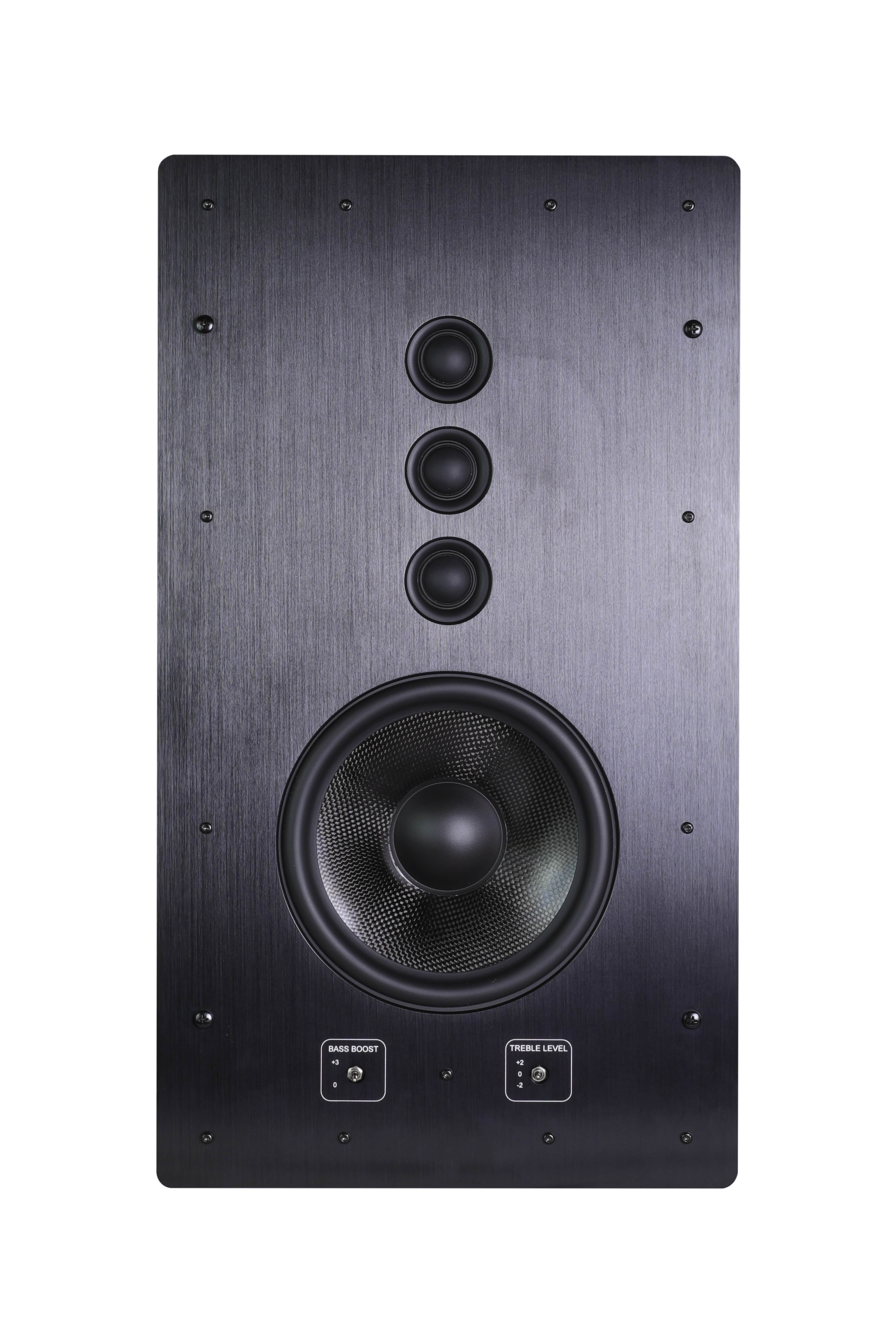

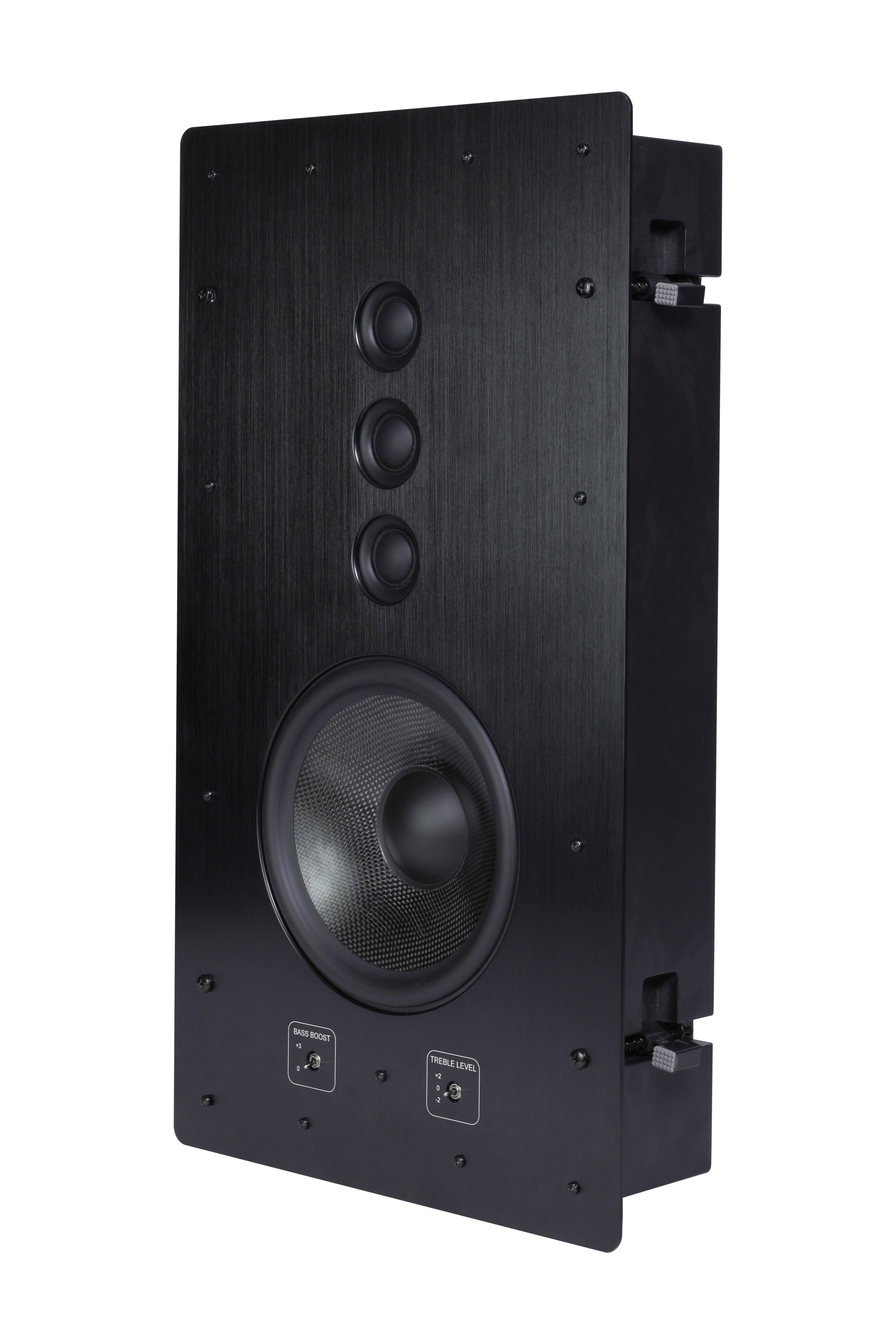

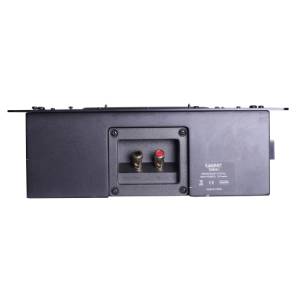

TD820i

Frequency response: 90~20K Hz
Power Handling (RMS): 80~160W
Sensitivity: 89dB
Impedance: 8 ohm
Tweeter: 8″ Driver
Woofer: 8″ Cone Rubber
High Frequency Adjustment: +2 / 0 / -2
Low Frequency Adjustment: +3 / 0
Product Size: 577 x 331 x 108.3 mm
Cut Out Dimension: 525 x 279 x 98 mm
Inner Carton Size: 641 x 397 x 199 mm
Master Carton SizeSPER: 651 x 407 x 225 mm

Read in PDF

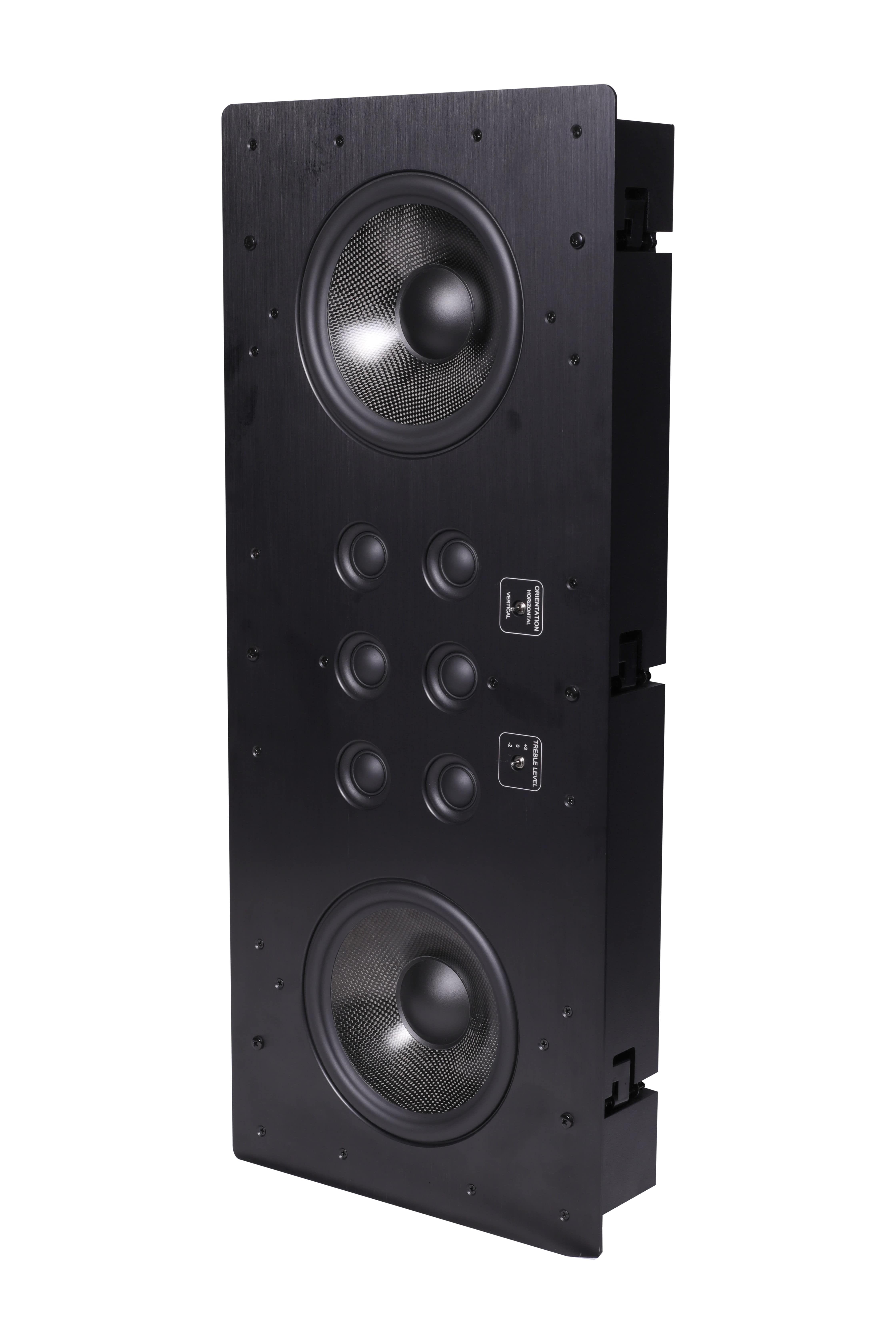

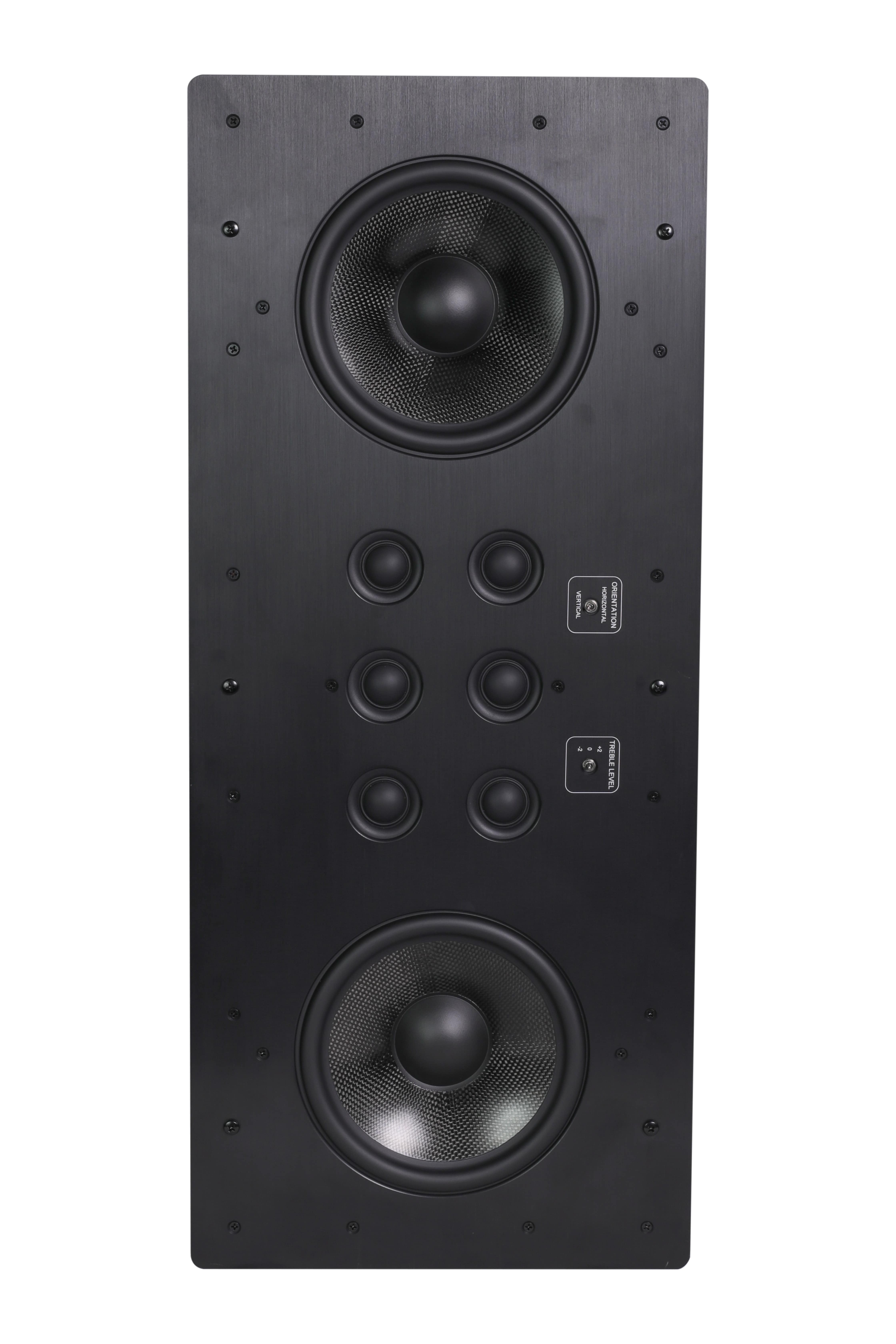

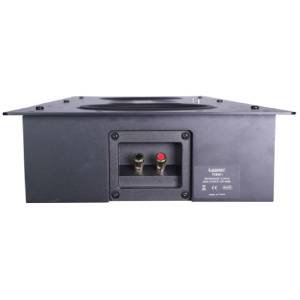

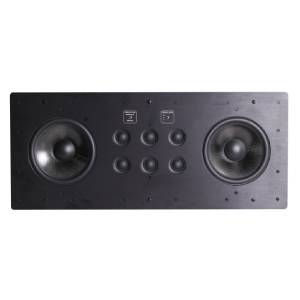

TD840i

Frequency response: 90~20K Hz
Power Handling (RMS): 80~160W
Sensitivity: 89dB
Impedance: 89 ohm
Tweeter: 8″ Driver
Woofer: 2 x8″ Cone Rubber
High Frequency Adjustment: +2 / 0 / -2
Low Frequency Adjustment: +3 / 0
Product Size: 763 x 331 x 108.3 mm
Cut Out Dimension: 711 x 279 x 98 mm
Inner Carton Size: 827 x 397 x 199 mm
Master Carton SizeSPER: 837 x 407 x 225 mm

Read in PDF
